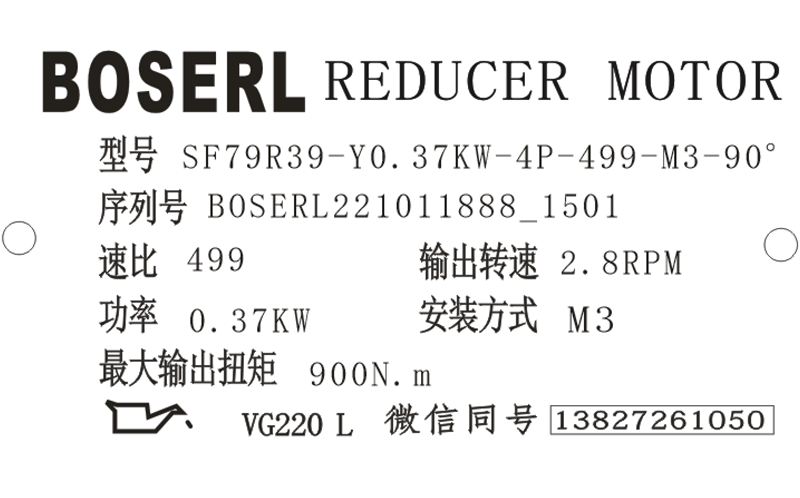

SF79R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF79R39減速機選型樣本。

SF79R39-Y0.37KW-4P-499-M3-90°

SF/R：系列代號

79/39：減速機規格代號

Y：電機

0.37KW：電機功率

4P：電機級數

499：減速機傳動比

M3：減速機安裝位置

90°：接線盒位置

SF79R39減速機電機安裝注意事項：

注意要將設備擺放平穩，固定好地腳和法蘭，并精確校準直接連接的聯軸器。防止安裝不當造成旋轉頻率和雙倍電源頻率的諧振。用手轉動轉子，檢查有無異常摩擦聲。在未聯接外部設備的狀態下檢查轉向。齒輪減速電機

SF79R39減速機電機安裝在塵埃灰屑或水滴等較多處，會對本機器會產生不良影響時，請用覆蓋物蓋住，覆蓋物不要密封，必須留有通氣口（若工作環境粉塵密聚或需要防水機種，購買時請?zhí)貏e說明）。

嚴禁在SF79R39減速機電機的周圍放置可燃物。否則有可能會導致火災。

嚴禁在SF79R39減速機電機的周圍放置阻礙通風的障礙物。否則，可能會因冷卻不暢、異常過熱而導致燙傷、火災等情況。

嚴禁站立在SF79R39減速機電機上面或懸掛其上。否則有可能會導致受傷。

請勿赤手觸摸SF79R39減速機電機的軸端部、內徑部的鍵槽。否則有可能會導致受傷。自鎖減速機

安裝完后，檢查電機是否通風良好。且確認沒有鄰近設備、表面或直射陽光向電機額外輻射熱量。

SF79R39減速機電機電流異常解決方案：

SF79R39減速機電機外殼帶電：電源線碰機殼，且絕緣皮破損，電源線修復；繞組受潮、絕緣老化、接地裝置壞，維修換定子線圈，重裝接地線。

SF79R39減速機電機三相電流不平衡：三相電壓不平衡，維修電源電壓；線圈部分線圈短路，更換定子線圈；線圈內有一個線苞嵌反，更換定子線圈。

SF79R39減速機電機電流過大：電源電壓偏差大，維修電源電壓；接法錯誤，應是Y接法錯用為△接法，接法更正；更換電機，定轉子擦；負載過大，選用大容量電機或減小負載。伺服電機蝸輪蝸桿減速機

SF79R39減速電機型號：

YQSF77R37-Y63M4，YQSF77R37-Y71M4，YQSF77R37-Y80M4，YQSF77R37-Y90M4，YQSF77RF37-Y0.12KW，YQSF77RF37-Y0.18KW，YQSF77RF37-Y0.25KW，YQSF77RF37-Y0.37KW，YQSF77RF37-Y0.55KW，YQSF77RF37-Y0.75KW，YQSF77RF37-Y1.1KW，YQSF77RF37-Y63M4，YQSF77RF37-Y71M4，YQSF77RF37-Y80M4，YQSF77RF37-Y90M4，YQSF77RF37-YB63M4，YQSF77RF37-YB71M4，YQSF77RF37-YB80M4，YQSF77RF37-YB90S4，YQSF77RF37-YDP63M4，YQSF77RF37-YDP71M4，YQSF77RF37-YDP80M4，YQSF77RF37-YDP90S4，YQSF77RF37-YE63M4，YQSF77RF37-YE71M4，YQSF77RF37-YE80M4，YQSF77RF37-YE90S4，YQSF77RF37-YEJ63M4，YQSF77RF37-YEJ71M4，YQSF77RF37-YEJ80M4，YQSF77RF37-YEJ90S4，YQSF77RF37-YEJB63M4，YQSF77RF37-YEJB71M4，YQSF77RF37-YEJB80M4，YQSF77RF37-YEJB90S4，YQSF77RF37-YP63M4，YQSF77RF37-YP71M4，YQSF77RF37-YP80M4，YQSF77RF37-YP90S4，YQSF77RF37-YPB63M4，YQSF77RF37-YPB71M4，YQSF77RF37-YPB80M4，YQSF77RF37-YPB90S4，YQSF77RF37-YPE63M4，YQSF77RF37-YPE71M4，YQSF77RF37-YPE80M4，YQSF77RF37-YPE90S4，YQSF77RF37-YSF63M4，YQSF77RF37-YSF71M4，YQSF77RF37-YSF80M4，YQSF77RF37-YSF90S4，YQSF77RF37-YVB63M4，YQSF77RF37-YVB71M4，YQSF77RF37-YVB80M4，YQSF77RF37-YVB90S4，YQSF77RF37-YVP63M4，YQSF77RF37-YVP71M4，YQSF77RF37-YVP80M4，YQSF77RF37-YVP90S4，ASF77R37-Y63M4，ASF77R37-Y71M4，ASF77R37-Y80M4，ASF77R37-Y90M4，ASF77RF37-Y0.12KW，ASF77RF37-Y0.18KW，ASF77RF37-Y0.25KW，ASF77RF37-Y0.37KW，ASF77RF37-Y0.55KW，ASF77RF37-Y0.75KW，ASF77RF37-Y1.1KW，ASF77RF37-Y63M4，ASF77RF37-Y71M4，ASF77RF37-Y80M4，ASF77RF37-Y90M4，ASF77RF37-YB63M4，ASF77RF37-YB71M4，ASF77RF37-YB80M4，ASF77RF37-YB90S4，ASF77RF37-YDP63M4，ASF77RF37-YDP71M4，ASF77RF37-YDP80M4，ASF77RF37-YDP90S4，ASF77RF37-YE63M4，ASF77RF37-YE71M4，ASF77RF37-YE80M4，ASF77RF37-YE90S4，ASF77RF37-YEJ63M4，ASF77RF37-YEJ71M4，ASF77RF37-YEJ80M4，ASF77RF37-YEJ90S4，ASF77RF37-YEJB63M4，ASF77RF37-YEJB71M4，ASF77RF37-YEJB80M4，ASF77RF37-YEJB90S4，ASF77RF37-YP63M4，ASF77RF37-YP71M4，ASF77RF37-YP80M4，ASF77RF37-YP90S4，ASF77RF37-YPB63M4，ASF77RF37-YPB71M4，ASF77RF37-YPB80M4，ASF77RF37-YPB90S4，ASF77RF37-YPE63M4，ASF77RF37-YPE71M4，ASF77RF37-YPE80M4，ASF77RF37-YPE90S4，ASF77RF37-YSF63M4，ASF77RF37-YSF71M4，ASF77RF37-YSF80M4，ASF77RF37-YSF90S4，ASF77RF37-YVB63M4，ASF77RF37-YVB71M4，ASF77RF37-YVB80M4，ASF77RF37-YVB90S4，ASF77RF37-YVP63M4，ASF77RF37-YVP71M4，ASF77RF37-YVP80M4，ASF77RF37-YVP90S4，SSF77R37-Y63M4，SSF77R37-Y71M4，SSF77R37-Y80M4，SSF77R37-Y90M4，SSF77RF37-Y0.12KW，SSF77RF37-Y0.18KW，SSF77RF37-Y0.25KW，SSF77RF37-Y0.37KW，SSF77RF37-Y0.55KW，SSF77RF37-Y0.75KW，SSF77RF37-Y1.1KW，SSF77RF37-Y63M4，SSF77RF37-Y71M4，SSF77RF37-Y80M4，SSF77RF37-Y90M4，SSF77RF37-YB63M4，SSF77RF37-YB71M4，SSF77RF37-YB80M4，SSF77RF37-YB90S4，SSF77RF37-YDP63M4，SSF77RF37-YDP71M4，SSF77RF37-YDP80M4，SSF77RF37-YDP90S4，SSF77RF37-YE63M4，SSF77RF37-YE71M4，SSF77RF37-YE80M4，SSF77RF37-YE90S4，SSF77RF37-YEJ63M4，SSF77RF37-YEJ71M4，SSF77RF37-YEJ80M4，SSF77RF37-YEJ90S4，SSF77RF37-YEJB63M4，SSF77RF37-YEJB71M4，SSF77RF37-YEJB80M4，SSF77RF37-YEJB90S4，SSF77RF37-YP63M4，SSF77RF37-YP71M4，SSF77RF37-YP80M4，SSF77RF37-YP90S4，SSF77RF37-YPB63M4，SSF77RF37-YPB71M4，SSF77RF37-YPB80M4，SSF77RF37-YPB90S4，SSF77RF37-YPE63M4，SSF77RF37-YPE71M4，SSF77RF37-YPE80M4，SSF77RF37-YPE90S4，SSF77RF37-YSF63M4，SSF77RF37-YSF71M4，SSF77RF37-YSF80M4，SSF77RF37-YSF90S4，SSF77RF37-YVB63M4，SSF77RF37-YVB71M4，SSF77RF37-YVB80M4，SSF77RF37-YVB90S4，SSF77RF37-YVP63M4，SSF77RF37-YVP71M4，SSF77RF37-YVP80M4，SSF77RF37-YVP90S4，WSF77R37-Y63M4，WSF77R37-Y71M4，WSF77R37-Y80M4，WSF77R37-Y90M4，WSF77RF37-Y0.12KW，WSF77RF37-Y0.18KW，WSF77RF37-Y0.25KW，WSF77RF37-Y0.37KW，WSF77RF37-Y0.55KW，WSF77RF37-Y0.75KW，WSF77RF37-Y1.1KW，WSF77RF37-Y63M4，WSF77RF37-Y71M4，WSF77RF37-Y80M4，WSF77RF37-Y90M4，WSF77RF37-YB63M4，WSF77RF37-YB71M4，WSF77RF37-YB80M4，WSF77RF37-YB90S4，WSF77RF37-YDP63M4，WSF77RF37-YDP71M4，WSF77RF37-YDP80M4，WSF77RF37-YDP90S4，WSF77RF37-YE63M4，WSF77RF37-YE71M4，WSF77RF37-YE80M4，WSF77RF37-YE90S4，WSF77RF37-YEJ63M4，WSF77RF37-YEJ71M4，WSF77RF37-YEJ80M4，WSF77RF37-YEJ90S4，WSF77RF37-YEJB63M4，WSF77RF37-YEJB71M4，WSF77RF37-YEJB80M4，WSF77RF37-YEJB90S4，WSF77RF37-YP63M4，WSF77RF37-YP71M4，WSF77RF37-YP80M4，WSF77RF37-YP90S4，WSF77RF37-YPB63M4，WSF77RF37-YPB71M4，WSF77RF37-YPB80M4，WSF77RF37-YPB90S4，WSF77RF37-YPE63M4，WSF77RF37-YPE71M4，WSF77RF37-YPE80M4，WSF77RF37-YPE90S4，WSF77RF37-YSF63M4，WSF77RF37-YSF71M4，WSF77RF37-YSF80M4，WSF77RF37-YSF90S4，WSF77RF37-YVB63M4，WSF77RF37-YVB71M4，WSF77RF37-YVB80M4，WSF77RF37-YVB90S4，WSF77RF37-YVP63M4，WSF77RF37-YVP71M4，WSF77RF37-YVP80M4，WSF77RF37-YVP90S4，XDSF77R37-Y63M4，XDSF77R37-Y71M4，XDSF77R37-Y80M4，XDSF77R37-Y90M4，XDSF77RF37-Y0.12KW，XDSF77RF37-Y0.18KW，XDSF77RF37-Y0.25KW，XDSF77RF37-Y0.37KW，XDSF77RF37-Y0.55KW，XDSF77RF37-Y0.75KW，XDSF77RF37-Y1.1KW，XDSF77RF37-Y63M4，XDSF77RF37-Y71M4，XDSF77RF37-Y80M4，XDSF77RF37-Y90M4，XDSF77RF37-YB63M4，XDSF77RF37-YB71M4，XDSF77RF37-YB80M4，XDSF77RF37-YB90S4，XDSF77RF37-YDP63M4，XDSF77RF37-YDP71M4，XDSF77RF37-YDP80M4，XDSF77RF37-YDP90S4，XDSF77RF37-YE63M4，XDSF77RF37-YE71M4，XDSF77RF37-YE80M4，XDSF77RF37-YE90S4，XDSF77RF37-YEJ63M4，XDSF77RF37-YEJ71M4，XDSF77RF37-YEJ80M4，XDSF77RF37-YEJ90S4，XDSF77RF37-YEJB63M4，XDSF77RF37-YEJB71M4，XDSF77RF37-YEJB80M4，XDSF77RF37-YEJB90S4，XDSF77RF37-YP63M4，XDSF77RF37-YP71M4，XDSF77RF37-YP80M4，XDSF77RF37-YP90S4，XDSF77RF37-YPB63M4，XDSF77RF37-YPB71M4，XDSF77RF37-YPB80M4，XDSF77RF37-YPB90S4，XDSF77RF37-YPE63M4，XDSF77RF37-YPE71M4，XDSF77RF37-YPE80M4，XDSF77RF37-YPE90S4，XDSF77RF37-YSF63M4，XDSF77RF37-YSF71M4，XDSF77RF37-YSF80M4，XDSF77RF37-YSF90S4，XDSF77RF37-YVB63M4，XDSF77RF37-YVB71M4，XDSF77RF37-YVB80M4，XDSF77RF37-YVB90S4，XDSF77RF37-YVP63M4，XDSF77RF37-YVP71M4，XDSF77RF37-YVP80M4，XDSF77RF37-YVP90S4，JCSF77R37-Y63M4，JCSF77R37-Y71M4，JCSF77R37-Y80M4，JCSF77R37-Y90M4，JCSF77RF37-Y0.12KW，JCSF77RF37-Y0.18KW，JCSF77RF37-Y0.25KW，JCSF77RF37-Y0.37KW，JCSF77RF37-Y0.55KW，JCSF77RF37-Y0.75KW，JCSF77RF37-Y1.1KW，JCSF77RF37-Y63M4，JCSF77RF37-Y71M4，JCSF77RF37-Y80M4，JCSF77RF37-Y90M4，JCSF77RF37-YB63M4，JCSF77RF37-YB71M4，JCSF77RF37-YB80M4，JCSF77RF37-YB90S4，JCSF77RF37-YDP63M4，JCSF77RF37-YDP71M4，JCSF77RF37-YDP80M4，JCSF77RF37-YDP90S4，JCSF77RF37-YE63M4，JCSF77RF37-YE71M4，JCSF77RF37-YE80M4，JCSF77RF37-YE90S4，JCSF77RF37-YEJ63M4，JCSF77RF37-YEJ71M4，JCSF77RF37-YEJ80M4，JCSF77RF37-YEJ90S4，JCSF77RF37-YEJB63M4，JCSF77RF37-YEJB71M4，JCSF77RF37-YEJB80M4，JCSF77RF37-YEJB90S4，JCSF77RF37-YP63M4，JCSF77RF37-YP71M4，JCSF77RF37-YP80M4，JCSF77RF37-YP90S4，JCSF77RF37-YPB63M4，JCSF77RF37-YPB71M4，JCSF77RF37-YPB80M4，JCSF77RF37-YPB90S4，JCSF77RF37-YPE63M4，JCSF77RF37-YPE71M4，JCSF77RF37-YPE80M4，JCSF77RF37-YPE90S4，JCSF77RF37-YSF63M4，JCSF77RF37-YSF71M4，JCSF77RF37-YSF80M4，JCSF77RF37-YSF90S4，JCSF77RF37-YVB63M4，JCSF77RF37-YVB71M4，JCSF77RF37-YVB80M4，JCSF77RF37-YVB90S4，JCSF77RF37-YVP63M4，JCSF77RF37-YVP71M4，JCSF77RF37-YVP80M4，JCSF77RF37-YVP90S4，NSF77R37-Y63M4，NSF77R37-Y71M4，NSF77R37-Y80M4，NSF77R37-Y90M4，NSF77RF37-Y0.12KW，NSF77RF37-Y0.18KW，NSF77RF37-Y0.25KW，NSF77RF37-Y0.37KW，NSF77RF37-Y0.55KW，NSF77RF37-Y0.75KW，NSF77RF37-Y1.1KW，NSF77RF37-Y63M4，NSF77RF37-Y71M4，NSF77RF37-Y80M4，NSF77RF37-Y90M4，NSF77RF37-YB63M4，NSF77RF37-YB71M4，NSF77RF37-YB80M4，NSF77RF37-YB90S4，NSF77RF37-YDP63M4，NSF77RF37-YDP71M4，NSF77RF37-YDP80M4，NSF77RF37-YDP90S4，NSF77RF37-YE63M4，NSF77RF37-YE71M4，NSF77RF37-YE80M4，NSF77RF37-YE90S4，NSF77RF37-YEJ63M4，NSF77RF37-YEJ71M4，NSF77RF37-YEJ80M4，NSF77RF37-YEJ90S4，NSF77RF37-YEJB63M4，NSF77RF37-YEJB71M4，NSF77RF37-YEJB80M4，NSF77RF37-YEJB90S4，NSF77RF37-YP63M4，NSF77RF37-YP71M4，NSF77RF37-YP80M4，NSF77RF37-YP90S4，NSF77RF37-YPB63M4，NSF77RF37-YPB71M4，NSF77RF37-YPB80M4，NSF77RF37-YPB90S4，NSF77RF37-YPE63M4，NSF77RF37-YPE71M4，NSF77RF37-YPE80M4，NSF77RF37-YPE90S4，NSF77RF37-YSF63M4，NSF77RF37-YSF71M4，NSF77RF37-YSF80M4，NSF77RF37-YSF90S4，NSF77RF37-YVB63M4，NSF77RF37-YVB71M4，NSF77RF37-YVB80M4，NSF77RF37-YVB90S4，NSF77RF37-YVP63M4，NSF77RF37-YVP71M4，NSF77RF37-YVP80M4，NSF77RF37-YVP90S4，SWF77RW37-Y63M4，SWF77RW37-Y71M4，SWF77RW37-Y80M4，SWF77RW37-Y90M4，SWF77RWF37-Y0.12KW，SWF77RWF37-Y0.18KW，SWF77RWF37-Y0.25KW，SWF77RWF37-Y0.37KW，SWF77RWF37-Y0.55KW，SWF77RWF37-Y0.75KW，SWF77RWF37-Y1.1KW，SWF77RWF37-Y63M4，SWF77RWF37-Y71M4，SWF77RWF37-Y80M4，SWF77RWF37-Y90M4，SWF77RWF37-YB63M4，SWF77RWF37-YB71M4，SWF77RWF37-YB80M4，SWF77RWF37-YB90S4，SWF77RWF37-YDP63M4，SWF77RWF37-YDP71M4，SWF77RWF37-YDP80M4，SWF77RWF37-YDP90S4，SWF77RWF37-YE63M4，SWF77RWF37-YE71M4，SWF77RWF37-YE80M4，SWF77RWF37-YE90S4，SWF77RWF37-YEJ63M4，SWF77RWF37-YEJ71M4，SWF77RWF37-YEJ80M4，SWF77RWF37-YEJ90S4，SWF77RWF37-YEJB63M4，SWF77RWF37-YEJB71M4，SWF77RWF37-YEJB80M4，SWF77RWF37-YEJB90S4，SWF77RWF37-YP63M4，SWF77RWF37-YP71M4，SWF77RWF37-YP80M4，SWF77RWF37-YP90S4，SWF77RWF37-YPB63M4，SWF77RWF37-YPB71M4，SWF77RWF37-YPB80M4，SWF77RWF37-YPB90S4，SWF77RWF37-YPE63M4，SWF77RWF37-YPE71M4，SWF77RWF37-YPE80M4，SWF77RWF37-YPE90S4，SWF77RWF37-YSF63M4，SWF77RWF37-YSF71M4，SWF77RWF37-YSF80M4，SWF77RWF37-YSF90S4，SWF77RWF37-YVB63M4，SWF77RWF37-YVB71M4，SWF77RWF37-YVB80M4，SWF77RWF37-YVB90S4，SWF77RWF37-YVP63M4，SWF77RWF37-YVP71M4，SWF77RWF37-YVP80M4，SWF77RWF37-YVP90S4，SF79R39-Y63M4，SF79R39-Y71M4，SF79R39-Y80M4，SF79R39-Y90M4，SF79RF39-Y0.12KW，SF79RF39-Y0.18KW，SF79RF39-Y0.25KW，SF79RF39-Y0.39KW，SF79RF39-Y0.55KW，SF79RF39-Y0.75KW，SF79RF39-Y1.1KW，SF79RF39-Y63M4，SF79RF39-Y71M4，SF79RF39-Y80M4，SF79RF39-Y90M4，SF79RF39-YB63M4，SF79RF39-YB71M4，SF79RF39-YB80M4，SF79RF39-YB90S4，SF79RF39-YDP63M4，SF79RF39-YDP71M4，SF79RF39-YDP80M4，SF79RF39-YDP90S4，SF79RF39-YE63M4，SF79RF39-YE71M4，SF79RF39-YE80M4，SF79RF39-YE90S4，SF79RF39-YEJ63M4，SF79RF39-YEJ71M4，SF79RF39-YEJ80M4，SF79RF39-YEJ90S4，SF79RF39-YEJB63M4，SF79RF39-YEJB71M4，SF79RF39-YEJB80M4，SF79RF39-YEJB90S4，SF79RF39-YP63M4，SF79RF39-YP71M4，SF79RF39-YP80M4，SF79RF39-YP90S4，SF79RF39-YPB63M4，SF79RF39-YPB71M4，SF79RF39-YPB80M4，SF79RF39-YPB90S4，SF79RF39-YPE63M4，SF79RF39-YPE71M4，SF79RF39-YPE80M4，SF79RF39-YPE90S4，SF79RF39-YSF63M4，SF79RF39-YSF71M4，SF79RF39-YSF80M4，SF79RF39-YSF90S4，SF79RF39-YVB63M4，SF79RF39-YVB71M4，SF79RF39-YVB80M4，SF79RF39-YVB90S4，SF79RF39-YVP63M4，SF79RF39-YVP71M4，SF79RF39-YVP80M4，SF79RF39-YVP90S4。
