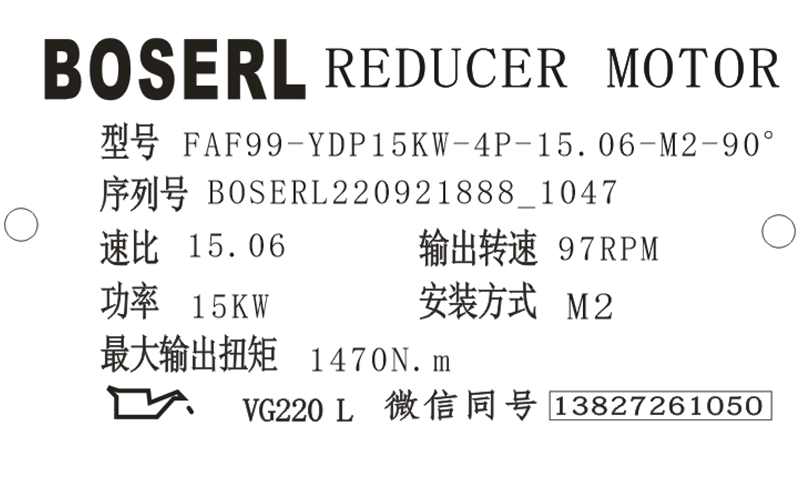

FAF99減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF99減速機選型樣本。

FAF99-YD15PKW-4P-15.06-M2-90°

FAF：系列代號

99：減速機規格代號

YDP：電機

15KW：電機功率

4P：電機級數

15.06：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

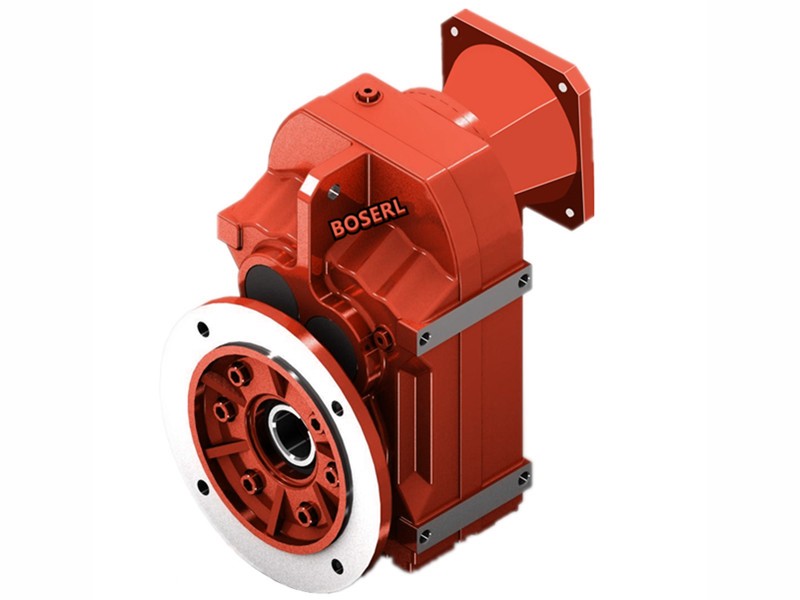

FAF99減速機AD軸入模塊配置：

FAF99減速機AD軸入模塊使用對中軸肩安裝應用設備：對應用設備進行固定時，必須提供相應長度的螺栓。新螺栓的長度L計算如下：［1］t+a；［t］旋入深度（參見表格）；［a］應用設備的厚度；［s］緊固螺紋（參見表格）

FAF99減速機AD軸入模塊根據計算所得的螺栓長度，選取最接近的較小的標準長度；從對中軸肩上卸下固定螺栓；清潔裝配表面和對中軸肩；清潔新螺栓的螺紋并且使用螺栓緊固劑抹在前段螺紋上；將應用設備裝在對中軸肩上，并根據下表所列的擰緊扭矩TA(見下表)擰入緊固螺栓。變頻電機減速機

FAF99減速機AD軸入模塊允許荷載：安裝電機時可能出現超常負荷；嚴禁超出下表所列的負荷值。強度等級為8.8的連接螺栓的最大負荷值。電機的最大允許許重力Fqmax，隨著中心距X的增加而呈線性下降。在中心距減小的情況下，Fqmax不增加；聯軸器輸出法蘭盤直徑：160mm。齒輪減速電機

FAF99減速機AD軸入模塊在進行調節之前松開螺母，使得螺栓可以在支架上軸向移動。當到達最終調節位置后再上緊螺母。不可通過支架來調整電機安裝平臺。

FAF99減速機維護檢查：

FAF99減速機檢查：首次運行300小時后更換潤滑油，以后每6個月或3000小時檢查一次，發現油位不足或明顯渾濁應及時更換(參考下列圖表)：操作步驟檢查油的質量與油位；檢查是否可能因軸承損壞產生運轉噪音；檢查密封圈是否漏油；對于帶扭矩臂的FAF99減速機：檢測橡膠緩沖塊，必要時進行更換。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換礦物油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換合成潤滑油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。示具體情況而定，不定期檢查（取決于外部影響）：修補或者更新表面漆/防銹漆。

FAF99減速機潤滑油更換周期：下圖為在一般條件下標準FAF99減速機的更換周期，對于惡劣環境或有腐蝕條件下使用的特殊情況要縮短更換潤滑油的間隔。平行軸斜齒輪減速機

FAF99減速機維護：根據外部受到的影響，可以在必要情況下對表面漆/防銹漆進行修補或更新。

FAF99減速機型號：

WFAF97-Y0.75KW，WFAF97-Y1.1KW，WFAF97-Y1.5KW，WFAF97-Y100M4，WFAF97-Y112M4，WFAF97-Y11KW，WFAF97-Y132M4，WFAF97-Y15KW，WFAF97-Y160M4，WFAF97-Y18.5KW，WFAF97-Y180M4，WFAF97-Y2.2KW，WFAF97-Y200M4，WFAF97-Y22KW，WFAF97-Y30KW，WFAF97-Y3KW，WFAF97-Y4KW，WFAF97-Y5.5KW，WFAF97-Y7.5KW，WFAF97-Y80M4，WFAF97-Y90M4，WFAF97-YB100M4，WFAF97-YB112M4，WFAF97-YB132M4，WFAF97-YB160M4，WFAF97-YB180M4，WFAF97-YB200M4，WFAF97-YB80M4，WFAF97-YB90M4，WFAF97-YDP100M4，WFAF97-YDP112M4，WFAF97-YDP132M4，WFAF97-YDP160M4，WFAF97-YDP180M4，WFAF97-YDP200M4，WFAF97-YDP80M4，WFAF97-YDP90M4，WFAF97-YE100M4，WFAF97-YE112M4，WFAF97-YE132M4，WFAF97-YE160M4，WFAF97-YE180M4，WFAF97-YE200M4，WFAF97-YE80M4，WFAF97-YE90M4，WFAF97-YEJ100M4，WFAF97-YEJ112M4，WFAF97-YEJ132M4，WFAF97-YEJ160M4，WFAF97-YEJ180M4，WFAF97-YEJ200M4，WFAF97-YEJ80M4，WFAF97-YEJ90M4，WFAF97-YEJB100M4，WFAF97-YEJB112M4，WFAF97-YEJB132M4，WFAF97-YEJB160M4，WFAF97-YEJB180M4，WFAF97-YEJB200M4，WFAF97-YEJB80M4，WFAF97-YEJB90M4，WFAF97-YP100M4，WFAF97-YP112M4，WFAF97-YP132M4，WFAF97-YP160M4，WFAF97-YP180M4，WFAF97-YP200M4，WFAF97-YP80M4，WFAF97-YP90M4，WFAF97-YPB100M4，WFAF97-YPB112M4，WFAF97-YPB132M4，WFAF97-YPB160M4，WFAF97-YPB180M4，WFAF97-YPB200M4，WFAF97-YPB80M4，WFAF97-YPB90M4，WFAF97-YPE100M4，WFAF97-YPE112M4，WFAF97-YPE132M4，WFAF97-YPE160M4，WFAF97-YPE180M4，WFAF97-YPE200M4，WFAF97-YPE80M4，WFAF97-YPE90M4，WFAF97-YS100M4，WFAF97-YS112M4，WFAF97-YS132M4，WFAF97-YS160M4，WFAF97-YS180M4，WFAF97-YS200M4，WFAF97-YS80M4，WFAF97-YS90M4，WFAF97-YVB100M4，WFAF97-YVB112M4，WFAF97-YVB132M4，WFAF97-YVB160M4，WFAF97-YVB180M4，WFAF97-YVB200M4，WFAF97-YVB80M4，WFAF97-YVB90M4，WFAF97-YVP100M4，WFAF97-YVP112M4，WFAF97-YVP132M4，WFAF97-YVP160M4，WFAF97-YVP180M4，WFAF97-YVP200M4，WFAF97-YVP80M4，WFAF97-YVP90M4，WFAF97-YVPEJ100M4，WFAF97-YVPEJ112M4，WFAF97-YVPEJ132M4，WFAF97-YVPEJ160M4，WFAF97-YVPEJ180M4，WFAF97-YVPEJ200M4，WFAF97-YVPEJ80M4，WFAF97-YVPEJ90M4，SFAF97-Y0.75KW，SFAF97-Y1.1KW，SFAF97-Y1.5KW，SFAF97-Y100M4，SFAF97-Y112M4，SFAF97-Y11KW，SFAF97-Y132M4，SFAF97-Y15KW，SFAF97-Y160M4，SFAF97-Y18.5KW，SFAF97-Y180M4，SFAF97-Y2.2KW，SFAF97-Y200M4，SFAF97-Y22KW，SFAF97-Y30KW，SFAF97-Y3KW，SFAF97-Y4KW，SFAF97-Y5.5KW，SFAF97-Y7.5KW，SFAF97-Y80M4，SFAF97-Y90M4，SFAF97-YB100M4，SFAF97-YB112M4，SFAF97-YB132M4，SFAF97-YB160M4，SFAF97-YB180M4，SFAF97-YB200M4，SFAF97-YB80M4，SFAF97-YB90M4，SFAF97-YDP100M4，SFAF97-YDP112M4，SFAF97-YDP132M4，SFAF97-YDP160M4，SFAF97-YDP180M4，SFAF97-YDP200M4，SFAF97-YDP80M4，SFAF97-YDP90M4，SFAF97-YE100M4，SFAF97-YE112M4，SFAF97-YE132M4，SFAF97-YE160M4，SFAF97-YE180M4，SFAF97-YE200M4，SFAF97-YE80M4，SFAF97-YE90M4，SFAF97-YEJ100M4，SFAF97-YEJ112M4，SFAF97-YEJ132M4，SFAF97-YEJ160M4，SFAF97-YEJ180M4，SFAF97-YEJ200M4，SFAF97-YEJ80M4，SFAF97-YEJ90M4，SFAF97-YEJB100M4，SFAF97-YEJB112M4，SFAF97-YEJB132M4，SFAF97-YEJB160M4，SFAF97-YEJB180M4，SFAF97-YEJB200M4，SFAF97-YEJB80M4，SFAF97-YEJB90M4，SFAF97-YP100M4，SFAF97-YP112M4，SFAF97-YP132M4，SFAF97-YP160M4，SFAF97-YP180M4，SFAF97-YP200M4，SFAF97-YP80M4，SFAF97-YP90M4，SFAF97-YPB100M4，SFAF97-YPB112M4，SFAF97-YPB132M4，SFAF97-YPB160M4，SFAF97-YPB180M4，SFAF97-YPB200M4，SFAF97-YPB80M4，SFAF97-YPB90M4，SFAF97-YPE100M4，SFAF97-YPE112M4，SFAF97-YPE132M4，SFAF97-YPE160M4，SFAF97-YPE180M4，SFAF97-YPE200M4，SFAF97-YPE80M4，SFAF97-YPE90M4，SFAF97-YS100M4，SFAF97-YS112M4，SFAF97-YS132M4，SFAF97-YS160M4，SFAF97-YS180M4，SFAF97-YS200M4，SFAF97-YS80M4，SFAF97-YS90M4，SFAF97-YVB100M4，SFAF97-YVB112M4，SFAF97-YVB132M4，SFAF97-YVB160M4，SFAF97-YVB180M4，SFAF97-YVB200M4，SFAF97-YVB80M4，SFAF97-YVB90M4，SFAF97-YVP100M4，SFAF97-YVP112M4，SFAF97-YVP132M4，SFAF97-YVP160M4，SFAF97-YVP180M4，SFAF97-YVP200M4，SFAF97-YVP80M4，SFAF97-YVP90M4，SFAF97-YVPEJ100M4，SFAF97-YVPEJ112M4，SFAF97-YVPEJ132M4，SFAF97-YVPEJ160M4，SFAF97-YVPEJ180M4，SFAF97-YVPEJ200M4，SFAF97-YVPEJ80M4，SFAF97-YVPEJ90M4，NFAF97-Y0.75KW，NFAF97-Y1.1KW，NFAF97-Y1.5KW，NFAF97-Y100M4，NFAF97-Y112M4，NFAF97-Y11KW，NFAF97-Y132M4，NFAF97-Y15KW，NFAF97-Y160M4，NFAF97-Y18.5KW，NFAF97-Y180M4，NFAF97-Y2.2KW，NFAF97-Y200M4，NFAF97-Y22KW，NFAF97-Y30KW，NFAF97-Y3KW，NFAF97-Y4KW，NFAF97-Y5.5KW，NFAF97-Y7.5KW，NFAF97-Y80M4，NFAF97-Y90M4，NFAF97-YB100M4，NFAF97-YB112M4，NFAF97-YB132M4，NFAF97-YB160M4，NFAF97-YB180M4，NFAF97-YB200M4，NFAF97-YB80M4，NFAF97-YB90M4，NFAF97-YDP100M4，NFAF97-YDP112M4，NFAF97-YDP132M4，NFAF97-YDP160M4，NFAF97-YDP180M4，NFAF97-YDP200M4，NFAF97-YDP80M4，NFAF97-YDP90M4，NFAF97-YE100M4，NFAF97-YE112M4，NFAF97-YE132M4，NFAF97-YE160M4，NFAF97-YE180M4，NFAF97-YE200M4，NFAF97-YE80M4，NFAF97-YE90M4，NFAF97-YEJ100M4，NFAF97-YEJ112M4，NFAF97-YEJ132M4，NFAF97-YEJ160M4，NFAF97-YEJ180M4，NFAF97-YEJ200M4，NFAF97-YEJ80M4，NFAF97-YEJ90M4，NFAF97-YEJB100M4，NFAF97-YEJB112M4，NFAF97-YEJB132M4，NFAF97-YEJB160M4，NFAF97-YEJB180M4，NFAF97-YEJB200M4，NFAF97-YEJB80M4，NFAF97-YEJB90M4，NFAF97-YP100M4，NFAF97-YP112M4，NFAF97-YP132M4，NFAF97-YP160M4，NFAF97-YP180M4，NFAF97-YP200M4，NFAF97-YP80M4，NFAF97-YP90M4，NFAF97-YPB100M4，NFAF97-YPB112M4，NFAF97-YPB132M4，NFAF97-YPB160M4，NFAF97-YPB180M4，NFAF97-YPB200M4，NFAF97-YPB80M4，NFAF97-YPB90M4，NFAF97-YPE100M4，NFAF97-YPE112M4，NFAF97-YPE132M4，NFAF97-YPE160M4，NFAF97-YPE180M4，NFAF97-YPE200M4，NFAF97-YPE80M4，NFAF97-YPE90M4，NFAF97-YS100M4，NFAF97-YS112M4，NFAF97-YS132M4，NFAF97-YS160M4，NFAF97-YS180M4，NFAF97-YS200M4，NFAF97-YS80M4，NFAF97-YS90M4，NFAF97-YVB100M4，NFAF97-YVB112M4，NFAF97-YVB132M4，NFAF97-YVB160M4，NFAF97-YVB180M4，NFAF97-YVB200M4，NFAF97-YVB80M4，NFAF97-YVB90M4，NFAF97-YVP100M4，NFAF97-YVP112M4，NFAF97-YVP132M4，NFAF97-YVP160M4，NFAF97-YVP180M4，NFAF97-YVP200M4，NFAF97-YVP80M4，NFAF97-YVP90M4，NFAF97-YVPEJ100M4，NFAF97-YVPEJ112M4，NFAF97-YVPEJ132M4，NFAF97-YVPEJ160M4，NFAF97-YVPEJ180M4，NFAF97-YVPEJ200M4，NFAF97-YVPEJ80M4，NFAF97-YVPEJ90M4，AFAF97-Y0.75KW，AFAF97-Y1.1KW，AFAF97-Y1.5KW，AFAF97-Y100M4，AFAF97-Y112M4，AFAF97-Y11KW，AFAF97-Y132M4，AFAF97-Y15KW，AFAF97-Y160M4，AFAF97-Y18.5KW，AFAF97-Y180M4，AFAF97-Y2.2KW，AFAF97-Y200M4，AFAF97-Y22KW，AFAF97-Y30KW，AFAF97-Y3KW，AFAF97-Y4KW，AFAF97-Y5.5KW，AFAF97-Y7.5KW，AFAF97-Y80M4，AFAF97-Y90M4，AFAF97-YB100M4，AFAF97-YB112M4，AFAF97-YB132M4，AFAF97-YB160M4，AFAF97-YB180M4，AFAF97-YB200M4，AFAF97-YB80M4，AFAF97-YB90M4，AFAF97-YDP100M4，AFAF97-YDP112M4，AFAF97-YDP132M4，AFAF97-YDP160M4，AFAF97-YDP180M4，AFAF97-YDP200M4，AFAF97-YDP80M4，AFAF97-YDP90M4，AFAF97-YE100M4，AFAF97-YE112M4，AFAF97-YE132M4，AFAF97-YE160M4，AFAF97-YE180M4，AFAF97-YE200M4，AFAF97-YE80M4，AFAF97-YE90M4，AFAF97-YEJ100M4，AFAF97-YEJ112M4，AFAF97-YEJ132M4，AFAF97-YEJ160M4，AFAF97-YEJ180M4，AFAF97-YEJ200M4，AFAF97-YEJ80M4，AFAF97-YEJ90M4，AFAF97-YEJB100M4，AFAF97-YEJB112M4，AFAF97-YEJB132M4，AFAF97-YEJB160M4，AFAF97-YEJB180M4，AFAF97-YEJB200M4，AFAF97-YEJB80M4，AFAF97-YEJB90M4，AFAF97-YP100M4，AFAF97-YP112M4，AFAF97-YP132M4，AFAF97-YP160M4，AFAF97-YP180M4，AFAF97-YP200M4，AFAF97-YP80M4，AFAF97-YP90M4，AFAF97-YPB100M4，AFAF97-YPB112M4，AFAF97-YPB132M4，AFAF97-YPB160M4，AFAF97-YPB180M4，AFAF97-YPB200M4，AFAF97-YPB80M4，AFAF97-YPB90M4，AFAF97-YPE100M4，AFAF97-YPE112M4，AFAF97-YPE132M4，AFAF97-YPE160M4，AFAF97-YPE180M4，AFAF97-YPE200M4，AFAF97-YPE80M4，AFAF97-YPE90M4，AFAF97-YS100M4，AFAF97-YS112M4，AFAF97-YS132M4，AFAF97-YS160M4，AFAF97-YS180M4，AFAF97-YS200M4，AFAF97-YS80M4，AFAF97-YS90M4，AFAF97-YVB100M4，AFAF97-YVB112M4，AFAF97-YVB132M4，AFAF97-YVB160M4，AFAF97-YVB180M4，AFAF97-YVB200M4，AFAF97-YVB80M4，AFAF97-YVB90M4，AFAF97-YVP100M4，AFAF97-YVP112M4，AFAF97-YVP132M4，AFAF97-YVP160M4，AFAF97-YVP180M4，AFAF97-YVP200M4，AFAF97-YVP80M4，AFAF97-YVP90M4，AFAF97-YVPEJ100M4，AFAF97-YVPEJ112M4，AFAF97-YVPEJ132M4，AFAF97-YVPEJ160M4，AFAF97-YVPEJ180M4，AFAF97-YVPEJ200M4，AFAF97-YVPEJ80M4，AFAF97-YVPEJ90M4，GFAF99-Y0.75KW，GFAF99-Y1.1KW，GFAF99-Y1.5KW，GFAF99-Y100M4，GFAF99-Y112M4，GFAF99-Y11KW，GFAF99-Y132M4，GFAF99-Y15KW，GFAF99-Y160M4，GFAF99-Y18.5KW，GFAF99-Y180M4，GFAF99-Y2.2KW，GFAF99-Y200M4，GFAF99-Y22KW，GFAF99-Y30KW，GFAF99-Y3KW，GFAF99-Y4KW，GFAF99-Y5.5KW，GFAF99-Y7.5KW，GFAF99-Y80M4，GFAF99-Y90M4，GFAF99-YB100M4，GFAF99-YB112M4，GFAF99-YB132M4，GFAF99-YB160M4，GFAF99-YB180M4，GFAF99-YB200M4，GFAF99-YB80M4，GFAF99-YB90M4，GFAF99-YDP100M4，GFAF99-YDP112M4，GFAF99-YDP132M4，GFAF99-YDP160M4，GFAF99-YDP180M4，GFAF99-YDP200M4，GFAF99-YDP80M4，GFAF99-YDP90M4，GFAF99-YE100M4，GFAF99-YE112M4，GFAF99-YE132M4，GFAF99-YE160M4，GFAF99-YE180M4，GFAF99-YE200M4，GFAF99-YE80M4，GFAF99-YE90M4，GFAF99-YEJ100M4，GFAF99-YEJ112M4，GFAF99-YEJ132M4，GFAF99-YEJ160M4，GFAF99-YEJ180M4，GFAF99-YEJ200M4，GFAF99-YEJ80M4，GFAF99-YEJ90M4，GFAF99-YEJB100M4，GFAF99-YEJB112M4，GFAF99-YEJB132M4，GFAF99-YEJB160M4，GFAF99-YEJB180M4，GFAF99-YEJB200M4，GFAF99-YEJB80M4，GFAF99-YEJB90M4，GFAF99-YP100M4，GFAF99-YP112M4，GFAF99-YP132M4，GFAF99-YP160M4，GFAF99-YP180M4，GFAF99-YP200M4，GFAF99-YP80M4，GFAF99-YP90M4，GFAF99-YPB100M4，GFAF99-YPB112M4，GFAF99-YPB132M4，GFAF99-YPB160M4，GFAF99-YPB180M4，GFAF99-YPB200M4，GFAF99-YPB80M4，GFAF99-YPB90M4，GFAF99-YPE100M4，GFAF99-YPE112M4，GFAF99-YPE132M4，GFAF99-YPE160M4，GFAF99-YPE180M4，GFAF99-YPE200M4，GFAF99-YPE80M4，GFAF99-YPE90M4，GFAF99-YS100M4，GFAF99-YS112M4，GFAF99-YS132M4，GFAF99-YS160M4，GFAF99-YS180M4，GFAF99-YS200M4，GFAF99-YS80M4，GFAF99-YS90M4，GFAF99-YVB100M4，GFAF99-YVB112M4，GFAF99-YVB132M4，GFAF99-YVB160M4，GFAF99-YVB180M4，GFAF99-YVB200M4，GFAF99-YVB80M4，GFAF99-YVB90M4，GFAF99-YVP100M4，GFAF99-YVP112M4，GFAF99-YVP132M4，GFAF99-YVP160M4，GFAF99-YVP180M4，GFAF99-YVP200M4，GFAF99-YVP80M4，GFAF99-YVP90M4，GFAF99-YVPEJ100M4，GFAF99-YVPEJ112M4，GFAF99-YVPEJ132M4，GFAF99-YVPEJ160M4，GFAF99-YVPEJ180M4，GFAF99-YVPEJ200M4，GFAF99-YVPEJ80M4，GFAF99-YVPEJ90M4。
