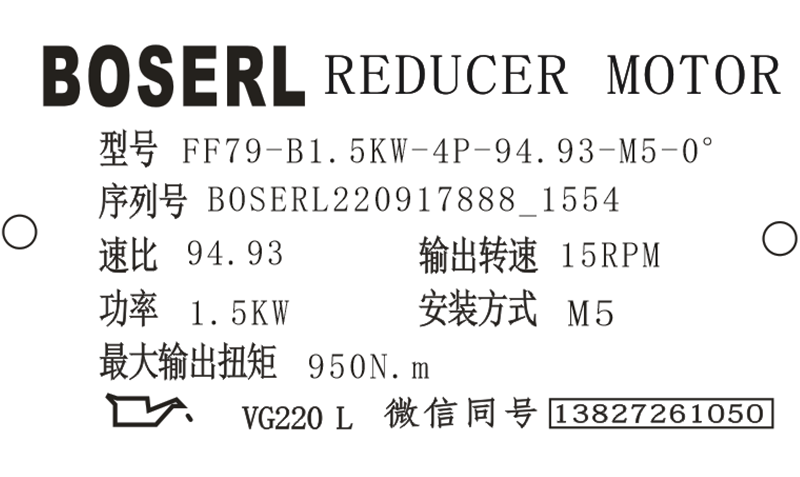

FF79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF79減速機選型樣本。

FF79-YVPEJ1.5KW-4P-94.93-M5-0°

FF：系列代號

79：減速機規格代號

Y：電機

VPEJ：變頻剎車電機

1.5KW：電機功率

4P：電機級數

94.93：減速機傳動比

M5：減速機安裝位置

0°：接線盒位置

FF79減速機潤滑油型號：

FF79減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF79減速機選型樣本中列出了安裝位置從M1到M6FF79減速機相應的潤滑油加注標準，請自行下載查看。平行軸斜齒輪減速機

FF79減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據FF79減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“FF79減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。

FF79減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

FF79減速機推薦使用的潤滑油，其等級和粘度指標見下表：

FF79減速機使用說明：

FF79減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

FF79減速機警告說明：由于FF79減速機發熱或FF79減速機油溫過高可能引起燙傷；對FF79減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

FF79減速機注意事項：若未注入正確的FF79減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

FF79減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見FF79減速機說明書安裝位置章節中的內容。剎車電機減速機

FF79減速機的螺母：立式安裝FF79減速機輸出法蘭螺母規格M12；FF79減速機螺母/螺母擰緊扭矩強度等級10.9。

FF79減速機型號：

NFF77-Y0.18KW，NFF77-Y0.25KW，NFF77-Y0.37KW，NFF77-Y0.55KW，NFF77-Y0.75KW，NFF77-Y1.1KW，NFF77-Y1.5KW，NFF77-Y100M4，NFF77-Y112M4，NFF77-Y11KW，NFF77-Y132M4，NFF77-Y160M4，NFF77-Y2.2KW，NFF77-Y3KW，NFF77-Y4KW，NFF77-Y5.5KW，NFF77-Y63M4，NFF77-Y7.5KW，NFF77-Y71M4，NFF77-Y80M4，NFF77-Y90M4，NFF77-YB100M4，NFF77-YB112M4，NFF77-YB132M4，NFF77-YB160M4，NFF77-YB63M4，NFF77-YB71M4，NFF77-YB80M4，NFF77-YB90M4，NFF77-YDP100M4，NFF77-YDP112M4，NFF77-YDP132M4，NFF77-YDP160M4，NFF77-YDP63M4，NFF77-YDP71M4，NFF77-YDP80M4，NFF77-YDP90M4，NFF77-YE100M4，NFF77-YE112M4，NFF77-YE132M4，NFF77-YE160M4，NFF77-YE63M4，NFF77-YE71M4，NFF77-YE80M4，NFF77-YE90M4，NFF77-YEJ100M4，NFF77-YEJ112M4，NFF77-YEJ132M4，NFF77-YEJ160M4，NFF77-YEJ63M4，NFF77-YEJ71M4，NFF77-YEJ80M4，NFF77-YEJ90M4，NFF77-YEJB100M4，NFF77-YEJB112M4，NFF77-YEJB132M4，NFF77-YEJB160M4，NFF77-YEJB63M4，NFF77-YEJB71M4，NFF77-YEJB80M4，NFF77-YEJB90M4，NFF77-YP100M4，NFF77-YP112M4，NFF77-YP132M4，NFF77-YP160M4，NFF77-YP63M4，NFF77-YP71M4，NFF77-YP80M4，NFF77-YP90M4，NFF77-YPB100M4，NFF77-YPB112M4，NFF77-YPB132M4，NFF77-YPB160M4，NFF77-YPB63M4，NFF77-YPB71M4，NFF77-YPB80M4，NFF77-YPB90M4，NFF77-YPE100M4，NFF77-YPE112M4，NFF77-YPE132M4，NFF77-YPE160M4，NFF77-YPE63M4，NFF77-YPE71M4，NFF77-YPE80M4，NFF77-YPE90M4，NFF77-YS100M4，NFF77-YS112M4，NFF77-YS132M4，NFF77-YS160M4，NFF77-YS63M4，NFF77-YS71M4，NFF77-YS80M4，NFF77-YS90M4，NFF77-YVB100M4，NFF77-YVB112M4，NFF77-YVB132M4，NFF77-YVB160M4，NFF77-YVB63M4，NFF77-YVB71M4，NFF77-YVB80M4，NFF77-YVB90M4，NFF77-YVP100M4，NFF77-YVP112M4，NFF77-YVP132M4，NFF77-YVP160M4，NFF77-YVP63M4，NFF77-YVP71M4，NFF77-YVP80M4，NFF77-YVP90M4，NFF77-YVPEJ100M4，NFF77-YVPEJ112M4，NFF77-YVPEJ132M4，NFF77-YVPEJ160M4，NFF77-YVPEJ63M4，NFF77-YVPEJ71M4，NFF77-YVPEJ80M4，NFF77-YVPEJ90M4，SFF77-Y0.18KW，SFF77-Y0.25KW，SFF77-Y0.37KW，SFF77-Y0.55KW，SFF77-Y0.75KW，SFF77-Y1.1KW，SFF77-Y1.5KW，SFF77-Y100M4，SFF77-Y112M4，SFF77-Y11KW，SFF77-Y132M4，SFF77-Y160M4，SFF77-Y2.2KW，SFF77-Y3KW，SFF77-Y4KW，SFF77-Y5.5KW，SFF77-Y63M4，SFF77-Y7.5KW，SFF77-Y71M4，SFF77-Y80M4，SFF77-Y90M4，SFF77-YB100M4，SFF77-YB112M4，SFF77-YB132M4，SFF77-YB160M4，SFF77-YB63M4，SFF77-YB71M4，SFF77-YB80M4，SFF77-YB90M4，SFF77-YDP100M4，SFF77-YDP112M4，SFF77-YDP132M4，SFF77-YDP160M4，SFF77-YDP63M4，SFF77-YDP71M4，SFF77-YDP80M4，SFF77-YDP90M4，SFF77-YE100M4，SFF77-YE112M4，SFF77-YE132M4，SFF77-YE160M4，SFF77-YE63M4，SFF77-YE71M4，SFF77-YE80M4，SFF77-YE90M4，SFF77-YEJ100M4，SFF77-YEJ112M4，SFF77-YEJ132M4，SFF77-YEJ160M4，SFF77-YEJ63M4，SFF77-YEJ71M4，SFF77-YEJ80M4，SFF77-YEJ90M4，SFF77-YEJB100M4，SFF77-YEJB112M4，SFF77-YEJB132M4，SFF77-YEJB160M4，SFF77-YEJB63M4，SFF77-YEJB71M4，SFF77-YEJB80M4，SFF77-YEJB90M4，SFF77-YP100M4，SFF77-YP112M4，SFF77-YP132M4，SFF77-YP160M4，SFF77-YP63M4，SFF77-YP71M4，SFF77-YP80M4，SFF77-YP90M4，SFF77-YPB100M4，SFF77-YPB112M4，SFF77-YPB132M4，SFF77-YPB160M4，SFF77-YPB63M4，SFF77-YPB71M4，SFF77-YPB80M4，SFF77-YPB90M4，SFF77-YPE100M4，SFF77-YPE112M4，SFF77-YPE132M4，SFF77-YPE160M4，SFF77-YPE63M4，SFF77-YPE71M4，SFF77-YPE80M4，SFF77-YPE90M4，SFF77-YS100M4，SFF77-YS112M4，SFF77-YS132M4，SFF77-YS160M4，SFF77-YS63M4，SFF77-YS71M4，SFF77-YS80M4，SFF77-YS90M4，SFF77-YVB100M4，SFF77-YVB112M4，SFF77-YVB132M4，SFF77-YVB160M4，SFF77-YVB63M4，SFF77-YVB71M4，SFF77-YVB80M4，SFF77-YVB90M4，SFF77-YVP100M4，SFF77-YVP112M4，SFF77-YVP132M4，SFF77-YVP160M4，SFF77-YVP63M4，SFF77-YVP71M4，SFF77-YVP80M4，SFF77-YVP90M4，SFF77-YVPEJ100M4，SFF77-YVPEJ112M4，SFF77-YVPEJ132M4，SFF77-YVPEJ160M4，SFF77-YVPEJ63M4，SFF77-YVPEJ71M4，SFF77-YVPEJ80M4，SFF77-YVPEJ90M4，WFF77-Y0.18KW，WFF77-Y0.25KW，WFF77-Y0.37KW，WFF77-Y0.55KW，WFF77-Y0.75KW，WFF77-Y1.1KW，WFF77-Y1.5KW，WFF77-Y100M4，WFF77-Y112M4，WFF77-Y11KW，WFF77-Y132M4，WFF77-Y160M4，WFF77-Y2.2KW，WFF77-Y3KW，WFF77-Y4KW，WFF77-Y5.5KW，WFF77-Y63M4，WFF77-Y7.5KW，WFF77-Y71M4，WFF77-Y80M4，WFF77-Y90M4，WFF77-YB100M4，WFF77-YB112M4，WFF77-YB132M4，WFF77-YB160M4，WFF77-YB63M4，WFF77-YB71M4，WFF77-YB80M4，WFF77-YB90M4，WFF77-YDP100M4，WFF77-YDP112M4，WFF77-YDP132M4，WFF77-YDP160M4，WFF77-YDP63M4，WFF77-YDP71M4，WFF77-YDP80M4，WFF77-YDP90M4，WFF77-YE100M4，WFF77-YE112M4，WFF77-YE132M4，WFF77-YE160M4，WFF77-YE63M4，WFF77-YE71M4，WFF77-YE80M4，WFF77-YE90M4，WFF77-YEJ100M4，WFF77-YEJ112M4，WFF77-YEJ132M4，WFF77-YEJ160M4，WFF77-YEJ63M4，WFF77-YEJ71M4，WFF77-YEJ80M4，WFF77-YEJ90M4，WFF77-YEJB100M4，WFF77-YEJB112M4，WFF77-YEJB132M4，WFF77-YEJB160M4，WFF77-YEJB63M4，WFF77-YEJB71M4，WFF77-YEJB80M4，WFF77-YEJB90M4，WFF77-YP100M4，WFF77-YP112M4，WFF77-YP132M4，WFF77-YP160M4，WFF77-YP63M4，WFF77-YP71M4，WFF77-YP80M4，WFF77-YP90M4，WFF77-YPB100M4，WFF77-YPB112M4，WFF77-YPB132M4，WFF77-YPB160M4，WFF77-YPB63M4，WFF77-YPB71M4，WFF77-YPB80M4，WFF77-YPB90M4，WFF77-YPE100M4，WFF77-YPE112M4，WFF77-YPE132M4，WFF77-YPE160M4，WFF77-YPE63M4，WFF77-YPE71M4，WFF77-YPE80M4，WFF77-YPE90M4，WFF77-YS100M4，WFF77-YS112M4，WFF77-YS132M4，WFF77-YS160M4，WFF77-YS63M4，WFF77-YS71M4，WFF77-YS80M4，WFF77-YS90M4，WFF77-YVB100M4，WFF77-YVB112M4，WFF77-YVB132M4，WFF77-YVB160M4，WFF77-YVB63M4，WFF77-YVB71M4，WFF77-YVB80M4，WFF77-YVB90M4，WFF77-YVP100M4，WFF77-YVP112M4，WFF77-YVP132M4，WFF77-YVP160M4，WFF77-YVP63M4，WFF77-YVP71M4，WFF77-YVP80M4，WFF77-YVP90M4，WFF77-YVPEJ100M4，WFF77-YVPEJ112M4，WFF77-YVPEJ132M4，WFF77-YVPEJ160M4，WFF77-YVPEJ63M4，WFF77-YVPEJ71M4，WFF77-YVPEJ80M4，WFF77-YVPEJ90M4，AFF77-Y0.18KW，AFF77-Y0.25KW，AFF77-Y0.37KW，AFF77-Y0.55KW，AFF77-Y0.75KW，AFF77-Y1.1KW，AFF77-Y1.5KW，AFF77-Y100M4，AFF77-Y112M4，AFF77-Y11KW，AFF77-Y132M4，AFF77-Y160M4，AFF77-Y2.2KW，AFF77-Y3KW，AFF77-Y4KW，AFF77-Y5.5KW，AFF77-Y63M4，AFF77-Y7.5KW，AFF77-Y71M4，AFF77-Y80M4，AFF77-Y90M4，AFF77-YB100M4，AFF77-YB112M4，AFF77-YB132M4，AFF77-YB160M4，AFF77-YB63M4，AFF77-YB71M4，AFF77-YB80M4，AFF77-YB90M4，AFF77-YDP100M4，AFF77-YDP112M4，AFF77-YDP132M4，AFF77-YDP160M4，AFF77-YDP63M4，AFF77-YDP71M4，AFF77-YDP80M4，AFF77-YDP90M4，AFF77-YE100M4，AFF77-YE112M4，AFF77-YE132M4，AFF77-YE160M4，AFF77-YE63M4，AFF77-YE71M4，AFF77-YE80M4，AFF77-YE90M4，AFF77-YEJ100M4，AFF77-YEJ112M4，AFF77-YEJ132M4，AFF77-YEJ160M4，AFF77-YEJ63M4，AFF77-YEJ71M4，AFF77-YEJ80M4，AFF77-YEJ90M4，AFF77-YEJB100M4，AFF77-YEJB112M4，AFF77-YEJB132M4，AFF77-YEJB160M4，AFF77-YEJB63M4，AFF77-YEJB71M4，AFF77-YEJB80M4，AFF77-YEJB90M4，AFF77-YP100M4，AFF77-YP112M4，AFF77-YP132M4，AFF77-YP160M4，AFF77-YP63M4，AFF77-YP71M4，AFF77-YP80M4，AFF77-YP90M4，AFF77-YPB100M4，AFF77-YPB112M4，AFF77-YPB132M4，AFF77-YPB160M4，AFF77-YPB63M4，AFF77-YPB71M4，AFF77-YPB80M4，AFF77-YPB90M4，AFF77-YPE100M4，AFF77-YPE112M4，AFF77-YPE132M4，AFF77-YPE160M4，AFF77-YPE63M4，AFF77-YPE71M4，AFF77-YPE80M4，AFF77-YPE90M4，AFF77-YS100M4，AFF77-YS112M4，AFF77-YS132M4，AFF77-YS160M4，AFF77-YS63M4，AFF77-YS71M4，AFF77-YS80M4，AFF77-YS90M4，AFF77-YVB100M4，AFF77-YVB112M4，AFF77-YVB132M4，AFF77-YVB160M4，AFF77-YVB63M4，AFF77-YVB71M4，AFF77-YVB80M4，AFF77-YVB90M4，AFF77-YVP100M4，AFF77-YVP112M4，AFF77-YVP132M4，AFF77-YVP160M4，AFF77-YVP63M4，AFF77-YVP71M4，AFF77-YVP80M4，AFF77-YVP90M4，AFF77-YVPEJ100M4，AFF77-YVPEJ112M4，AFF77-YVPEJ132M4，AFF77-YVPEJ160M4，AFF77-YVPEJ63M4，AFF77-YVPEJ71M4，AFF77-YVPEJ80M4，AFF77-YVPEJ90M4，GFF79-Y0.18KW，GFF79-Y0.25KW，GFF79-Y0.37KW，GFF79-Y0.55KW，GFF79-Y0.75KW，GFF79-Y1.1KW，GFF79-Y1.5KW，GFF79-Y100M4，GFF79-Y112M4，GFF79-Y11KW，GFF79-Y132M4，GFF79-Y160M4，GFF79-Y2.2KW，GFF79-Y3KW，GFF79-Y4KW，GFF79-Y5.5KW，GFF79-Y63M4，GFF79-Y7.5KW，GFF79-Y71M4，GFF79-Y80M4，GFF79-Y90M4，GFF79-YB100M4，GFF79-YB112M4，GFF79-YB132M4，GFF79-YB160M4，GFF79-YB63M4，GFF79-YB71M4，GFF79-YB80M4，GFF79-YB90M4，GFF79-YDP100M4，GFF79-YDP112M4，GFF79-YDP132M4，GFF79-YDP160M4，GFF79-YDP63M4，GFF79-YDP71M4，GFF79-YDP80M4，GFF79-YDP90M4，GFF79-YE100M4，GFF79-YE112M4，GFF79-YE132M4，GFF79-YE160M4，GFF79-YE63M4，GFF79-YE71M4，GFF79-YE80M4，GFF79-YE90M4，GFF79-YEJ100M4，GFF79-YEJ112M4，GFF79-YEJ132M4，GFF79-YEJ160M4，GFF79-YEJ63M4，GFF79-YEJ71M4，GFF79-YEJ80M4，GFF79-YEJ90M4，GFF79-YEJB100M4，GFF79-YEJB112M4，GFF79-YEJB132M4，GFF79-YEJB160M4，GFF79-YEJB63M4，GFF79-YEJB71M4，GFF79-YEJB80M4，GFF79-YEJB90M4，GFF79-YP100M4，GFF79-YP112M4，GFF79-YP132M4，GFF79-YP160M4，GFF79-YP63M4，GFF79-YP71M4，GFF79-YP80M4，GFF79-YP90M4，GFF79-YPB100M4，GFF79-YPB112M4，GFF79-YPB132M4，GFF79-YPB160M4，GFF79-YPB63M4，GFF79-YPB71M4，GFF79-YPB80M4，GFF79-YPB90M4，GFF79-YPE100M4，GFF79-YPE112M4，GFF79-YPE132M4，GFF79-YPE160M4，GFF79-YPE63M4，GFF79-YPE71M4，GFF79-YPE80M4，GFF79-YPE90M4，GFF79-YS100M4，GFF79-YS112M4，GFF79-YS132M4，GFF79-YS160M4，GFF79-YS63M4，GFF79-YS71M4，GFF79-YS80M4，GFF79-YS90M4，GFF79-YVB100M4，GFF79-YVB112M4，GFF79-YVB132M4，GFF79-YVB160M4，GFF79-YVB63M4，GFF79-YVB71M4，GFF79-YVB80M4，GFF79-YVB90M4，GFF79-YVP100M4，GFF79-YVP112M4，GFF79-YVP132M4，GFF79-YVP160M4，GFF79-YVP63M4，GFF79-YVP71M4，GFF79-YVP80M4，GFF79-YVP90M4，GFF79-YVPEJ100M4，GFF79-YVPEJ112M4，GFF79-YVPEJ132M4，GFF79-YVPEJ160M4，GFF79-YVPEJ63M4，GFF79-YVPEJ71M4，GFF79-YVPEJ80M4，GFF79-YVPEJ90M4。

FF79減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.0668room.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F79減速機
