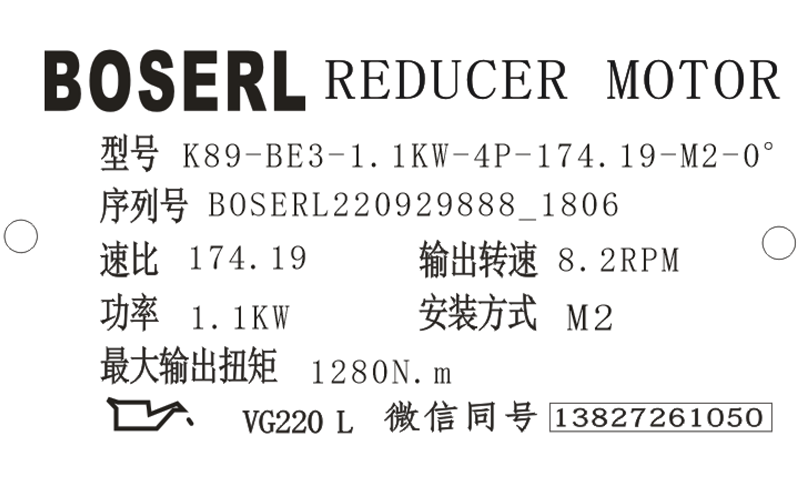

K89減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K89減速器選型樣本。

K89-BE3-1.1KW-4P-141.80-M2-0°

K：系列代號

89：減速機規格代號

BE3：電機

1.1KW：電機功率

4P：電機級數

141.80：減速機傳動比

M2：減速機安裝位置

0°：接線盒位置

K89減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

K89減速器安裝所需工具以及材料：

由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。K89減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K89減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K89減速器的安裝位置改變為M5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將K89減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在K89減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對K89減速器箱體進行連接接地。直角減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（K89減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

K89減速器故障售后服務統籌：

K89減速器潤滑油泄露：K89減速器密封面密封性能不良，擰緊K89減速器蓋上的螺釘并觀察K89減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；K89減速器透氣閥失效，給K89減速器透氣參見“K89減速器說明書的安裝位置”章節。齒輪減速電機

K89減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“K89減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“K89減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；

K89減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“K89減速器說明書的檢查/維護”章節；K89減速器安裝位置錯誤，正確安裝透氣閥參見“K89減速器說明書的安裝位置”章節，調節油位參見“K89減速器說明書的檢查/維護”章節。

K89減速器電機或輸入軸轉動，而輸出軸不轉：K89減速器中的軸輪轂聯接斷裂，將K89減速器或減速電機送來我司修理。K系列減速機

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對K89減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。

K89減速器型號：

KW87-Y0.37KW，KW87-Y0.55KW，KW87-Y0.75KW，KW87-Y1.1KW，KW87-Y1.5KW，KW87-Y100M4，KW87-Y112M4，KW87-Y11KW，KW87-Y132M4，KW87-Y15KW，KW87-Y160M4，KW87-Y18.5KW，KW87-Y180M4，KW87-Y2.2KW，KW87-Y200M4，KW87-Y22KW，KW87-Y3KW，KW87-Y4KW，KW87-Y5.5KW，KW87-Y7.5KW，KW87-Y71M4，KW87-Y80M4，KW87-Y90M4，KW87-YB100M4，KW87-YB112M4，KW87-YB132M4，KW87-YB160M4，KW87-YB180M4，KW87-YB200M4，KW87-YB71M4，KW87-YB80M4，KW87-YB90M4，KW87-YDP100M4，KW87-YDP112M4，KW87-YDP132M4，KW87-YDP160M4，KW87-YDP180M4，KW87-YDP200M4，KW87-YDP71M4，KW87-YDP80M4，KW87-YDP90M4，KW87-YE100M4，KW87-YE112M4，KW87-YE132M4，KW87-YE160M4，KW87-YE180M4，KW87-YE200M4，KW87-YE71M4，KW87-YE80M4，KW87-YE90M4，KW87-YEJ100M4，KW87-YEJ112M4，KW87-YEJ132M4，KW87-YEJ160M4，KW87-YEJ180M4，KW87-YEJ200M4，KW87-YEJ71M4，KW87-YEJ80M4，KW87-YEJ90M4，KW87-YEJB100M4，KW87-YEJB112M4，KW87-YEJB132M4，KW87-YEJB160M4，KW87-YEJB180M4，KW87-YEJB200M4，KW87-YEJB71M4，KW87-YEJB80M4，KW87-YEJB90M4，KW87-YP100M4，KW87-YP112M4，KW87-YP132M4，KW87-YP160M4，KW87-YP180M4，KW87-YP200M4，KW87-YP71M4，KW87-YP80M4，KW87-YP90M4，KW87-YPB100M4，KW87-YPB112M4，KW87-YPB132M4，KW87-YPB160M4，KW87-YPB180M4，KW87-YPB200M4，KW87-YPB71M4，KW87-YPB80M4，KW87-YPB90M4，KW87-YPE100M4，KW87-YPE112M4，KW87-YPE132M4，KW87-YPE160M4，KW87-YPE180M4，KW87-YPE200M4，KW87-YPE71M4，KW87-YPE80M4，KW87-YPE90M4，KW87-YS100M4，KW87-YS112M4，KW87-YS132M4，KW87-YS160M4，KW87-YS180M4，KW87-YS200M4，KW87-YS71M4，KW87-YS80M4，KW87-YS90M4，KW87-YVB100M4，KW87-YVB112M4，KW87-YVB132M4，KW87-YVB160M4，KW87-YVB180M4，KW87-YVB200M4，KW87-YVB71M4，KW87-YVB80M4，KW87-YVB90M4，KW87-YVP100M4，KW87-YVP112M4，KW87-YVP132M4，KW87-YVP160M4，KW87-YVP180M4，KW87-YVP200M4，KW87-YVP71M4，KW87-YVP80M4，KW87-YVP90M4，KW87-YVPEJ100M4，KW87-YVPEJ112M4，KW87-YVPEJ132M4，KW87-YVPEJ160M4，KW87-YVPEJ180M4，KW87-YVPEJ200M4，KW87-YVPEJ71M4，KW87-YVPEJ80M4，KW87-YVPEJ90M4，XDK87-Y0.37KW，XDK87-Y0.55KW，XDK87-Y0.75KW，XDK87-Y1.1KW，XDK87-Y1.5KW，XDK87-Y100M4，XDK87-Y112M4，XDK87-Y11KW，XDK87-Y132M4，XDK87-Y15KW，XDK87-Y160M4，XDK87-Y18.5KW，XDK87-Y180M4，XDK87-Y2.2KW，XDK87-Y200M4，XDK87-Y22KW，XDK87-Y3KW，XDK87-Y4KW，XDK87-Y5.5KW，XDK87-Y7.5KW，XDK87-Y71M4，XDK87-Y80M4，XDK87-Y90M4，XDK87-YB100M4，XDK87-YB112M4，XDK87-YB132M4，XDK87-YB160M4，XDK87-YB180M4，XDK87-YB200M4，XDK87-YB71M4，XDK87-YB80M4，XDK87-YB90M4，XDK87-YDP100M4，XDK87-YDP112M4，XDK87-YDP132M4，XDK87-YDP160M4，XDK87-YDP180M4，XDK87-YDP200M4，XDK87-YDP71M4，XDK87-YDP80M4，XDK87-YDP90M4，XDK87-YE100M4，XDK87-YE112M4，XDK87-YE132M4，XDK87-YE160M4，XDK87-YE180M4，XDK87-YE200M4，XDK87-YE71M4，XDK87-YE80M4，XDK87-YE90M4，XDK87-YEJ100M4，XDK87-YEJ112M4，XDK87-YEJ132M4，XDK87-YEJ160M4，XDK87-YEJ180M4，XDK87-YEJ200M4，XDK87-YEJ71M4，XDK87-YEJ80M4，XDK87-YEJ90M4，XDK87-YEJB100M4，XDK87-YEJB112M4，XDK87-YEJB132M4，XDK87-YEJB160M4，XDK87-YEJB180M4，XDK87-YEJB200M4，XDK87-YEJB71M4，XDK87-YEJB80M4，XDK87-YEJB90M4，XDK87-YP100M4，XDK87-YP112M4，XDK87-YP132M4，XDK87-YP160M4，XDK87-YP180M4，XDK87-YP200M4，XDK87-YP71M4，XDK87-YP80M4，XDK87-YP90M4，XDK87-YPB100M4，XDK87-YPB112M4，XDK87-YPB132M4，XDK87-YPB160M4，XDK87-YPB180M4，XDK87-YPB200M4，XDK87-YPB71M4，XDK87-YPB80M4，XDK87-YPB90M4，XDK87-YPE100M4，XDK87-YPE112M4，XDK87-YPE132M4，XDK87-YPE160M4，XDK87-YPE180M4，XDK87-YPE200M4，XDK87-YPE71M4，XDK87-YPE80M4，XDK87-YPE90M4，XDK87-YS100M4，XDK87-YS112M4，XDK87-YS132M4，XDK87-YS160M4，XDK87-YS180M4，XDK87-YS200M4，XDK87-YS71M4，XDK87-YS80M4，XDK87-YS90M4，XDK87-YVB100M4，XDK87-YVB112M4，XDK87-YVB132M4，XDK87-YVB160M4，XDK87-YVB180M4，XDK87-YVB200M4，XDK87-YVB71M4，XDK87-YVB80M4，XDK87-YVB90M4，XDK87-YVP100M4，XDK87-YVP112M4，XDK87-YVP132M4，XDK87-YVP160M4，XDK87-YVP180M4，XDK87-YVP200M4，XDK87-YVP71M4，XDK87-YVP80M4，XDK87-YVP90M4，XDK87-YVPEJ100M4，XDK87-YVPEJ112M4，XDK87-YVPEJ132M4，XDK87-YVPEJ160M4，XDK87-YVPEJ180M4，XDK87-YVPEJ200M4，XDK87-YVPEJ71M4，XDK87-YVPEJ80M4，XDK87-YVPEJ90M4，YQK87-Y0.37KW，YQK87-Y0.55KW，YQK87-Y0.75KW，YQK87-Y1.1KW，YQK87-Y1.5KW，YQK87-Y100M4，YQK87-Y112M4，YQK87-Y11KW，YQK87-Y132M4，YQK87-Y15KW，YQK87-Y160M4，YQK87-Y18.5KW，YQK87-Y180M4，YQK87-Y2.2KW，YQK87-Y200M4，YQK87-Y22KW，YQK87-Y3KW，YQK87-Y4KW，YQK87-Y5.5KW，YQK87-Y7.5KW，YQK87-Y71M4，YQK87-Y80M4，YQK87-Y90M4，YQK87-YB100M4，YQK87-YB112M4，YQK87-YB132M4，YQK87-YB160M4，YQK87-YB180M4，YQK87-YB200M4，YQK87-YB71M4，YQK87-YB80M4，YQK87-YB90M4，YQK87-YDP100M4，YQK87-YDP112M4，YQK87-YDP132M4，YQK87-YDP160M4，YQK87-YDP180M4，YQK87-YDP200M4，YQK87-YDP71M4，YQK87-YDP80M4，YQK87-YDP90M4，YQK87-YE100M4，YQK87-YE112M4，YQK87-YE132M4，YQK87-YE160M4，YQK87-YE180M4，YQK87-YE200M4，YQK87-YE71M4，YQK87-YE80M4，YQK87-YE90M4，YQK87-YEJ100M4，YQK87-YEJ112M4，YQK87-YEJ132M4，YQK87-YEJ160M4，YQK87-YEJ180M4，YQK87-YEJ200M4，YQK87-YEJ71M4，YQK87-YEJ80M4，YQK87-YEJ90M4，YQK87-YEJB100M4，YQK87-YEJB112M4，YQK87-YEJB132M4，YQK87-YEJB160M4，YQK87-YEJB180M4，YQK87-YEJB200M4，YQK87-YEJB71M4，YQK87-YEJB80M4，YQK87-YEJB90M4，YQK87-YP100M4，YQK87-YP112M4，YQK87-YP132M4，YQK87-YP160M4，YQK87-YP180M4，YQK87-YP200M4，YQK87-YP71M4，YQK87-YP80M4，YQK87-YP90M4，YQK87-YPB100M4，YQK87-YPB112M4，YQK87-YPB132M4，YQK87-YPB160M4，YQK87-YPB180M4，YQK87-YPB200M4，YQK87-YPB71M4，YQK87-YPB80M4，YQK87-YPB90M4，YQK87-YPE100M4，YQK87-YPE112M4，YQK87-YPE132M4，YQK87-YPE160M4，YQK87-YPE180M4，YQK87-YPE200M4，YQK87-YPE71M4，YQK87-YPE80M4，YQK87-YPE90M4，YQK87-YS100M4，YQK87-YS112M4，YQK87-YS132M4，YQK87-YS160M4，YQK87-YS180M4，YQK87-YS200M4，YQK87-YS71M4，YQK87-YS80M4，YQK87-YS90M4，YQK87-YVB100M4，YQK87-YVB112M4，YQK87-YVB132M4，YQK87-YVB160M4，YQK87-YVB180M4，YQK87-YVB200M4，YQK87-YVB71M4，YQK87-YVB80M4，YQK87-YVB90M4，YQK87-YVP100M4，YQK87-YVP112M4，YQK87-YVP132M4，YQK87-YVP160M4，YQK87-YVP180M4，YQK87-YVP200M4，YQK87-YVP71M4，YQK87-YVP80M4，YQK87-YVP90M4，YQK87-YVPEJ100M4，YQK87-YVPEJ112M4，YQK87-YVPEJ132M4，YQK87-YVPEJ160M4，YQK87-YVPEJ180M4，YQK87-YVPEJ200M4，YQK87-YVPEJ71M4，YQK87-YVPEJ80M4，YQK87-YVPEJ90M4，JCK87-Y0.37KW，JCK87-Y0.55KW，JCK87-Y0.75KW，JCK87-Y1.1KW，JCK87-Y1.5KW，JCK87-Y100M4，JCK87-Y112M4，JCK87-Y11KW，JCK87-Y132M4，JCK87-Y15KW，JCK87-Y160M4，JCK87-Y18.5KW，JCK87-Y180M4，JCK87-Y2.2KW，JCK87-Y200M4，JCK87-Y22KW，JCK87-Y3KW，JCK87-Y4KW，JCK87-Y5.5KW，JCK87-Y7.5KW，JCK87-Y71M4，JCK87-Y80M4，JCK87-Y90M4，JCK87-YB100M4，JCK87-YB112M4，JCK87-YB132M4，JCK87-YB160M4，JCK87-YB180M4，JCK87-YB200M4，JCK87-YB71M4，JCK87-YB80M4，JCK87-YB90M4，JCK87-YDP100M4，JCK87-YDP112M4，JCK87-YDP132M4，JCK87-YDP160M4，JCK87-YDP180M4，JCK87-YDP200M4，JCK87-YDP71M4，JCK87-YDP80M4，JCK87-YDP90M4，JCK87-YE100M4，JCK87-YE112M4，JCK87-YE132M4，JCK87-YE160M4，JCK87-YE180M4，JCK87-YE200M4，JCK87-YE71M4，JCK87-YE80M4，JCK87-YE90M4，JCK87-YEJ100M4，JCK87-YEJ112M4，JCK87-YEJ132M4，JCK87-YEJ160M4，JCK87-YEJ180M4，JCK87-YEJ200M4，JCK87-YEJ71M4，JCK87-YEJ80M4，JCK87-YEJ90M4，JCK87-YEJB100M4，JCK87-YEJB112M4，JCK87-YEJB132M4，JCK87-YEJB160M4，JCK87-YEJB180M4，JCK87-YEJB200M4，JCK87-YEJB71M4，JCK87-YEJB80M4，JCK87-YEJB90M4，JCK87-YP100M4，JCK87-YP112M4，JCK87-YP132M4，JCK87-YP160M4，JCK87-YP180M4，JCK87-YP200M4，JCK87-YP71M4，JCK87-YP80M4，JCK87-YP90M4，JCK87-YPB100M4，JCK87-YPB112M4，JCK87-YPB132M4，JCK87-YPB160M4，JCK87-YPB180M4，JCK87-YPB200M4，JCK87-YPB71M4，JCK87-YPB80M4，JCK87-YPB90M4，JCK87-YPE100M4，JCK87-YPE112M4，JCK87-YPE132M4，JCK87-YPE160M4，JCK87-YPE180M4，JCK87-YPE200M4，JCK87-YPE71M4，JCK87-YPE80M4，JCK87-YPE90M4，JCK87-YS100M4，JCK87-YS112M4，JCK87-YS132M4，JCK87-YS160M4，JCK87-YS180M4，JCK87-YS200M4，JCK87-YS71M4，JCK87-YS80M4，JCK87-YS90M4，JCK87-YVB100M4，JCK87-YVB112M4，JCK87-YVB132M4，JCK87-YVB160M4，JCK87-YVB180M4，JCK87-YVB200M4，JCK87-YVB71M4，JCK87-YVB80M4，JCK87-YVB90M4，JCK87-YVP100M4，JCK87-YVP112M4，JCK87-YVP132M4，JCK87-YVP160M4，JCK87-YVP180M4，JCK87-YVP200M4，JCK87-YVP71M4，JCK87-YVP80M4，JCK87-YVP90M4，JCK87-YVPEJ100M4，JCK87-YVPEJ112M4，JCK87-YVPEJ132M4，JCK87-YVPEJ160M4，JCK87-YVPEJ180M4，JCK87-YVPEJ200M4，JCK87-YVPEJ71M4，JCK87-YVPEJ80M4，JCK87-YVPEJ90M4，K89-Y0.37KW，K89-Y0.55KW，K89-Y0.75KW，K89-Y1.1KW，K89-Y1.5KW，K89-Y100M4，K89-Y112M4，K89-Y11KW，K89-Y132M4，K89-Y15KW，K89-Y160M4，K89-Y18.5KW，K89-Y180M4，K89-Y2.2KW，K89-Y200M4，K89-Y22KW，K89-Y3KW，K89-Y4KW，K89-Y5.5KW，K89-Y7.5KW，K89-Y71M4，K89-Y80M4，K89-Y90M4，K89-YB100M4，K89-YB112M4，K89-YB132M4，K89-YB160M4，K89-YB180M4，K89-YB200M4，K89-YB71M4，K89-YB80M4，K89-YB90M4，K89-YDP100M4，K89-YDP112M4，K89-YDP132M4，K89-YDP160M4，K89-YDP180M4，K89-YDP200M4，K89-YDP71M4，K89-YDP80M4，K89-YDP90M4，K89-YE100M4，K89-YE112M4，K89-YE132M4，K89-YE160M4，K89-YE180M4，K89-YE200M4，K89-YE71M4，K89-YE80M4，K89-YE90M4，K89-YEJ100M4，K89-YEJ112M4，K89-YEJ132M4，K89-YEJ160M4，K89-YEJ180M4，K89-YEJ200M4，K89-YEJ71M4，K89-YEJ80M4，K89-YEJ90M4，K89-YEJB100M4，K89-YEJB112M4，K89-YEJB132M4，K89-YEJB160M4，K89-YEJB180M4，K89-YEJB200M4，K89-YEJB71M4，K89-YEJB80M4，K89-YEJB90M4，K89-YP100M4，K89-YP112M4，K89-YP132M4，K89-YP160M4，K89-YP180M4，K89-YP200M4，K89-YP71M4，K89-YP80M4，K89-YP90M4，K89-YPB100M4，K89-YPB112M4，K89-YPB132M4，K89-YPB160M4，K89-YPB180M4，K89-YPB200M4，K89-YPB71M4，K89-YPB80M4，K89-YPB90M4，K89-YPE100M4，K89-YPE112M4，K89-YPE132M4，K89-YPE160M4，K89-YPE180M4，K89-YPE200M4，K89-YPE71M4，K89-YPE80M4，K89-YPE90M4，K89-YS100M4，K89-YS112M4，K89-YS132M4，K89-YS160M4，K89-YS180M4，K89-YS200M4，K89-YS71M4，K89-YS80M4，K89-YS90M4，K89-YVB100M4，K89-YVB112M4，K89-YVB132M4，K89-YVB160M4，K89-YVB180M4，K89-YVB200M4，K89-YVB71M4，K89-YVB80M4，K89-YVB90M4，K89-YVP100M4，K89-YVP112M4，K89-YVP132M4，K89-YVP160M4，K89-YVP180M4，K89-YVP200M4，K89-YVP71M4，K89-YVP80M4，K89-YVP90M4，K89-YVPEJ100M4，K89-YVPEJ112M4，K89-YVPEJ132M4，K89-YVPEJ160M4，K89-YVPEJ180M4，K89-YVPEJ200M4，K89-YVPEJ71M4，K89-YVPEJ80M4，K89-YVPEJ90M4，K87SF80，K87SF90，K87SF100，K87SF112，K87SF115，K87SF140，K87SF160，K87SF190。
