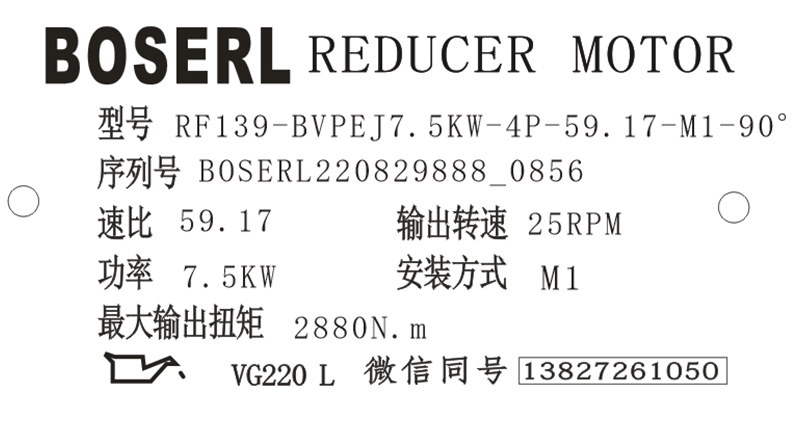

RF139減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF139減速器選型樣本。

RF139-BVPEJ7.5KW-4P-59.17-M1-90°

RF：系列代號

139：減速機規格代號

B：電機

VPEJ：變頻剎車電機

7.5KW：電機功率

4P：電機級數

59.17：減速機傳動比

M1：減速機安裝位置

90°：接線盒位置

RF139減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動RF139減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

RF139減速器安裝操作的正確方法：

RF139減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。立式減速機

RF139減速器的透氣：安裝位置為M1、M3、M5以及M6中的R139、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列RF139減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的RF139減速器，啟動RF139減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。

RF139減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

RF139減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的RF139減速器選型樣本”）。RF系列減速機

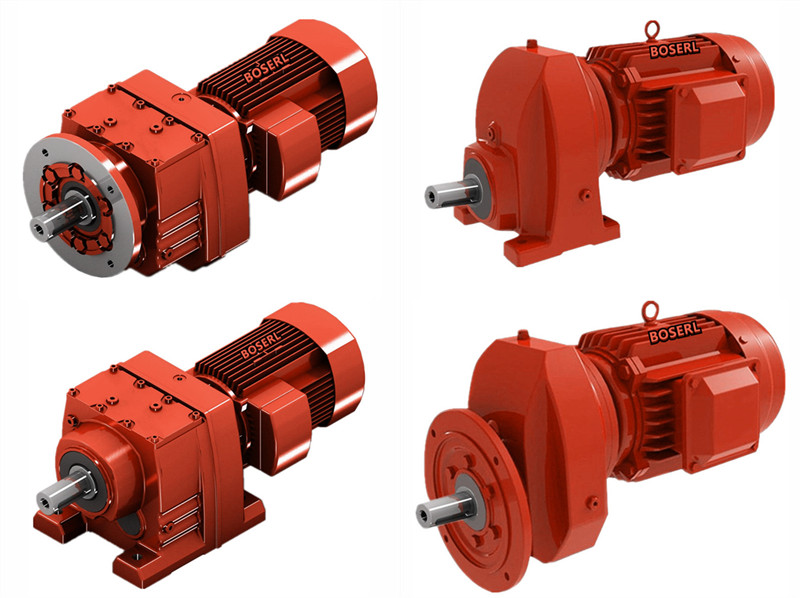

RF139減速器型號：

SRF137-AM112M4，SRF137-AM132M4，SRF137-AM160M4，SRF137-AM180M4，SRF137-AM200M4，SRF137-AM225M4，SRF137-AM250M4，SRF137-Y112M4，SRF137-Y11KW，SRF137-Y132M4，SRF137-Y15KW，SRF137-Y160M4，SRF137-Y18.5KW，SRF137-Y180M4，SRF137-Y200M4，SRF137-Y225M4，SRF137-Y22KW，SRF137-Y250M4，SRF137-Y30KW，SRF137-Y37KW，SRF137-Y45KW，SRF137-Y4KW，SRF137-Y5.5KW，SRF137-Y55KW，SRF137-Y7.5KW，SRF137-YB112M4，SRF137-YB132M4，SRF137-YB160M4，SRF137-YB180M4，SRF137-YB200M4，SRF137-YB225M4，SRF137-YB250M4，SRF137-YDP112M4，SRF137-YDP132M4，SRF137-YDP160M4，SRF137-YDP180M4，SRF137-YDP200M4，SRF137-YDP225M4，SRF137-YDP250M4，SRF137-YE112M4，SRF137-YE132M4，SRF137-YE160M4，SRF137-YE180M4，SRF137-YE200M4，SRF137-YE225M4，SRF137-YE250M4，SRF137-YEJ112M4，SRF137-YEJ132M4，SRF137-YEJ160M4，SRF137-YEJ180M4，SRF137-YEJ200M4，SRF137-YEJ225M4，SRF137-YEJ250M4，SRF137-YEJB112M4，SRF137-YEJB132M4，SRF137-YEJB160M4，SRF137-YEJB180M4，SRF137-YEJB200M4，SRF137-YEJB225M4，SRF137-YEJB250M4，SRF137-YP112M4，SRF137-YP132M4，SRF137-YP160M4，SRF137-YP180M4，SRF137-YP200M4，SRF137-YP225M4，SRF137-YP250M4，SRF137-YPB112M4，SRF137-YPB132M4，SRF137-YPB160M4，SRF137-YPB180M4，SRF137-YPB200M4，SRF137-YPB225M4，SRF137-YPB250M4，SRF137-YPE112M4，SRF137-YPE132M4，SRF137-YPE160M4，SRF137-YPE180M4，SRF137-YPE200M4，SRF137-YPE225M4，SRF137-YPE250M4，SRF137-YS112M4，SRF137-YS132M4，SRF137-YS160M4，SRF137-YS180M4，SRF137-YS200M4，SRF137-YS225M4，SRF137-YS250M4，SRF137-YVB112M4，SRF137-YVB132M4，SRF137-YVB160M4，SRF137-YVB180M4，SRF137-YVB200M4，SRF137-YVB225M4，SRF137-YVB250M4，SRF137-YVP112M4，SRF137-YVP132M4，SRF137-YVP160M4，SRF137-YVP180M4，SRF137-YVP200M4，SRF137-YVP225M4，SRF137-YVP250M4，SRF137-YVPEJ112M4，SRF137-YVPEJ132M4，SRF137-YVPEJ160M4，SRF137-YVPEJ180M4，SRF137-YVPEJ200M4，SRF137-YVPEJ225M4，SRF137-YVPEJ250M4，NRF137-AM112M4，NRF137-AM132M4，NRF137-AM160M4，NRF137-AM180M4，NRF137-AM200M4，NRF137-AM225M4，NRF137-AM250M4，NRF137-Y112M4，NRF137-Y11KW，NRF137-Y132M4，NRF137-Y15KW，NRF137-Y160M4，NRF137-Y18.5KW，NRF137-Y180M4，NRF137-Y200M4，NRF137-Y225M4，NRF137-Y22KW，NRF137-Y250M4，NRF137-Y30KW，NRF137-Y37KW，NRF137-Y45KW，NRF137-Y4KW，NRF137-Y5.5KW，NRF137-Y55KW，NRF137-Y7.5KW，NRF137-YB112M4，NRF137-YB132M4，NRF137-YB160M4，NRF137-YB180M4，NRF137-YB200M4，NRF137-YB225M4，NRF137-YB250M4，NRF137-YDP112M4，NRF137-YDP132M4，NRF137-YDP160M4，NRF137-YDP180M4，NRF137-YDP200M4，NRF137-YDP225M4，NRF137-YDP250M4，NRF137-YE112M4，NRF137-YE132M4，NRF137-YE160M4，NRF137-YE180M4，NRF137-YE200M4，NRF137-YE225M4，NRF137-YE250M4，NRF137-YEJ112M4，NRF137-YEJ132M4，NRF137-YEJ160M4，NRF137-YEJ180M4，NRF137-YEJ200M4，NRF137-YEJ225M4，NRF137-YEJ250M4，NRF137-YEJB112M4，NRF137-YEJB132M4，NRF137-YEJB160M4，NRF137-YEJB180M4，NRF137-YEJB200M4，NRF137-YEJB225M4，NRF137-YEJB250M4，NRF137-YP112M4，NRF137-YP132M4，NRF137-YP160M4，NRF137-YP180M4，NRF137-YP200M4，NRF137-YP225M4，NRF137-YP250M4，NRF137-YPB112M4，NRF137-YPB132M4，NRF137-YPB160M4，NRF137-YPB180M4，NRF137-YPB200M4，NRF137-YPB225M4，NRF137-YPB250M4，NRF137-YPE112M4，NRF137-YPE132M4，NRF137-YPE160M4，NRF137-YPE180M4，NRF137-YPE200M4，NRF137-YPE225M4，NRF137-YPE250M4，NRF137-YS112M4，NRF137-YS132M4，NRF137-YS160M4，NRF137-YS180M4，NRF137-YS200M4，NRF137-YS225M4，NRF137-YS250M4，NRF137-YVB112M4，NRF137-YVB132M4，NRF137-YVB160M4，NRF137-YVB180M4，NRF137-YVB200M4，NRF137-YVB225M4，NRF137-YVB250M4，NRF137-YVP112M4，NRF137-YVP132M4，NRF137-YVP160M4，NRF137-YVP180M4，NRF137-YVP200M4，NRF137-YVP225M4，NRF137-YVP250M4，NRF137-YVPEJ112M4，NRF137-YVPEJ132M4，NRF137-YVPEJ160M4，NRF137-YVPEJ180M4，NRF137-YVPEJ200M4，NRF137-YVPEJ225M4，NRF137-YVPEJ250M4，ARF137-AM112M4，ARF137-AM132M4，ARF137-AM160M4，ARF137-AM180M4，ARF137-AM200M4，ARF137-AM225M4，ARF137-AM250M4，ARF137-Y112M4，ARF137-Y11KW，ARF137-Y132M4，ARF137-Y15KW，ARF137-Y160M4，ARF137-Y18.5KW，ARF137-Y180M4，ARF137-Y200M4，ARF137-Y225M4，ARF137-Y22KW，ARF137-Y250M4，ARF137-Y30KW，ARF137-Y37KW，ARF137-Y45KW，ARF137-Y4KW，ARF137-Y5.5KW，ARF137-Y55KW，ARF137-Y7.5KW，ARF137-YB112M4，ARF137-YB132M4，ARF137-YB160M4，ARF137-YB180M4，ARF137-YB200M4，ARF137-YB225M4，ARF137-YB250M4，ARF137-YDP112M4，ARF137-YDP132M4，ARF137-YDP160M4，ARF137-YDP180M4，ARF137-YDP200M4，ARF137-YDP225M4，ARF137-YDP250M4，ARF137-YE112M4，ARF137-YE132M4，ARF137-YE160M4，ARF137-YE180M4，ARF137-YE200M4，ARF137-YE225M4，ARF137-YE250M4，ARF137-YEJ112M4，ARF137-YEJ132M4，ARF137-YEJ160M4，ARF137-YEJ180M4，ARF137-YEJ200M4，ARF137-YEJ225M4，ARF137-YEJ250M4，ARF137-YEJB112M4，ARF137-YEJB132M4，ARF137-YEJB160M4，ARF137-YEJB180M4，ARF137-YEJB200M4，ARF137-YEJB225M4，ARF137-YEJB250M4，ARF137-YP112M4，ARF137-YP132M4，ARF137-YP160M4，ARF137-YP180M4，ARF137-YP200M4，ARF137-YP225M4，ARF137-YP250M4，ARF137-YPB112M4，ARF137-YPB132M4，ARF137-YPB160M4，ARF137-YPB180M4，ARF137-YPB200M4，ARF137-YPB225M4，ARF137-YPB250M4，ARF137-YPE112M4，ARF137-YPE132M4，ARF137-YPE160M4，ARF137-YPE180M4，ARF137-YPE200M4，ARF137-YPE225M4，ARF137-YPE250M4，ARF137-YS112M4，ARF137-YS132M4，ARF137-YS160M4，ARF137-YS180M4，ARF137-YS200M4，ARF137-YS225M4，ARF137-YS250M4，ARF137-YVB112M4，ARF137-YVB132M4，ARF137-YVB160M4，ARF137-YVB180M4，ARF137-YVB200M4，ARF137-YVB225M4，ARF137-YVB250M4，ARF137-YVP112M4，ARF137-YVP132M4，ARF137-YVP160M4，ARF137-YVP180M4，ARF137-YVP200M4，ARF137-YVP225M4，ARF137-YVP250M4，ARF137-YVPEJ112M4，ARF137-YVPEJ132M4，ARF137-YVPEJ160M4，ARF137-YVPEJ180M4，ARF137-YVPEJ200M4，ARF137-YVPEJ225M4，ARF137-YVPEJ250M4，WRF137-AM112M4，WRF137-AM132M4，WRF137-AM160M4，WRF137-AM180M4，WRF137-AM200M4，WRF137-AM225M4，WRF137-AM250M4，WRF137-Y112M4，WRF137-Y11KW，WRF137-Y132M4，WRF137-Y15KW，WRF137-Y160M4，WRF137-Y18.5KW，WRF137-Y180M4，WRF137-Y200M4，WRF137-Y225M4，WRF137-Y22KW，WRF137-Y250M4，WRF137-Y30KW，WRF137-Y37KW，WRF137-Y45KW，WRF137-Y4KW，WRF137-Y5.5KW，WRF137-Y55KW，WRF137-Y7.5KW，WRF137-YB112M4，WRF137-YB132M4，WRF137-YB160M4，WRF137-YB180M4，WRF137-YB200M4，WRF137-YB225M4，WRF137-YB250M4，WRF137-YDP112M4，WRF137-YDP132M4，WRF137-YDP160M4，WRF137-YDP180M4，WRF137-YDP200M4，WRF137-YDP225M4，WRF137-YDP250M4，WRF137-YE112M4，WRF137-YE132M4，WRF137-YE160M4，WRF137-YE180M4，WRF137-YE200M4，WRF137-YE225M4，WRF137-YE250M4，WRF137-YEJ112M4，WRF137-YEJ132M4，WRF137-YEJ160M4，WRF137-YEJ180M4，WRF137-YEJ200M4，WRF137-YEJ225M4，WRF137-YEJ250M4，WRF137-YEJB112M4，WRF137-YEJB132M4，WRF137-YEJB160M4，WRF137-YEJB180M4，WRF137-YEJB200M4，WRF137-YEJB225M4，WRF137-YEJB250M4，WRF137-YP112M4，WRF137-YP132M4，WRF137-YP160M4，WRF137-YP180M4，WRF137-YP200M4，WRF137-YP225M4，WRF137-YP250M4，WRF137-YPB112M4，WRF137-YPB132M4，WRF137-YPB160M4，WRF137-YPB180M4，WRF137-YPB200M4，WRF137-YPB225M4，WRF137-YPB250M4，WRF137-YPE112M4，WRF137-YPE132M4，WRF137-YPE160M4，WRF137-YPE180M4，WRF137-YPE200M4，WRF137-YPE225M4，WRF137-YPE250M4，WRF137-YS112M4，WRF137-YS132M4，WRF137-YS160M4，WRF137-YS180M4，WRF137-YS200M4，WRF137-YS225M4，WRF137-YS250M4，WRF137-YVB112M4，WRF137-YVB132M4，WRF137-YVB160M4，WRF137-YVB180M4，WRF137-YVB200M4，WRF137-YVB225M4，WRF137-YVB250M4，WRF137-YVP112M4，WRF137-YVP132M4，WRF137-YVP160M4，WRF137-YVP180M4，WRF137-YVP200M4，WRF137-YVP225M4，WRF137-YVP250M4，WRF137-YVPEJ112M4，WRF137-YVPEJ132M4，WRF137-YVPEJ160M4，WRF137-YVPEJ180M4，WRF137-YVPEJ200M4，WRF137-YVPEJ225M4，WRF137-YVPEJ250M4，GRF139-AM112M4，GRF139-AM132M4，GRF139-AM160M4，GRF139-AM180M4，GRF139-AM200M4，GRF139-AM225M4，GRF139-AM250M4，GRF139-Y112M4，GRF139-Y11KW，GRF139-Y132M4，GRF139-Y15KW，GRF139-Y160M4，GRF139-Y18.5KW，GRF139-Y180M4，GRF139-Y200M4，GRF139-Y225M4，GRF139-Y22KW，GRF139-Y250M4，GRF139-Y30KW，GRF139-Y37KW，GRF139-Y45KW，GRF139-Y4KW，GRF139-Y5.5KW，GRF139-Y55KW，GRF139-Y7.5KW，GRF139-YB112M4，GRF139-YB132M4，GRF139-YB160M4，GRF139-YB180M4，GRF139-YB200M4，GRF139-YB225M4，GRF139-YB250M4，GRF139-YDP112M4，GRF139-YDP132M4，GRF139-YDP160M4，GRF139-YDP180M4，GRF139-YDP200M4，GRF139-YDP225M4，GRF139-YDP250M4，GRF139-YE112M4，GRF139-YE132M4，GRF139-YE160M4，GRF139-YE180M4，GRF139-YE200M4，GRF139-YE225M4，GRF139-YE250M4，GRF139-YEJ112M4，GRF139-YEJ132M4，GRF139-YEJ160M4，GRF139-YEJ180M4，GRF139-YEJ200M4，GRF139-YEJ225M4，GRF139-YEJ250M4，GRF139-YEJB112M4，GRF139-YEJB132M4，GRF139-YEJB160M4，GRF139-YEJB180M4，GRF139-YEJB200M4，GRF139-YEJB225M4，GRF139-YEJB250M4，GRF139-YP112M4，GRF139-YP132M4，GRF139-YP160M4，GRF139-YP180M4，GRF139-YP200M4，GRF139-YP225M4，GRF139-YP250M4，GRF139-YPB112M4，GRF139-YPB132M4，GRF139-YPB160M4，GRF139-YPB180M4，GRF139-YPB200M4，GRF139-YPB225M4，GRF139-YPB250M4，GRF139-YPE112M4，GRF139-YPE132M4，GRF139-YPE160M4，GRF139-YPE180M4，GRF139-YPE200M4，GRF139-YPE225M4，GRF139-YPE250M4，GRF139-YS112M4，GRF139-YS132M4，GRF139-YS160M4，GRF139-YS180M4，GRF139-YS200M4，GRF139-YS225M4，GRF139-YS250M4，GRF139-YVB112M4，GRF139-YVB132M4，GRF139-YVB160M4，GRF139-YVB180M4，GRF139-YVB200M4，GRF139-YVB225M4，GRF139-YVB250M4，GRF139-YVP112M4，GRF139-YVP132M4，GRF139-YVP160M4，GRF139-YVP180M4，GRF139-YVP200M4，GRF139-YVP225M4，GRF139-YVP250M4，GRF139-YVPEJ112M4，GRF139-YVPEJ132M4，GRF139-YVPEJ160M4，GRF139-YVPEJ180M4，GRF139-YVPEJ200M4，GRF139-YVPEJ225M4，GRF139-YVPEJ250M4，RF137SF80，RF137SF90，RF137SF100，RF137SF112，RF137SF115，RF137SF140，RF137SF160，RF137SF190。

RF139減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.0668room.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：R139減速機
