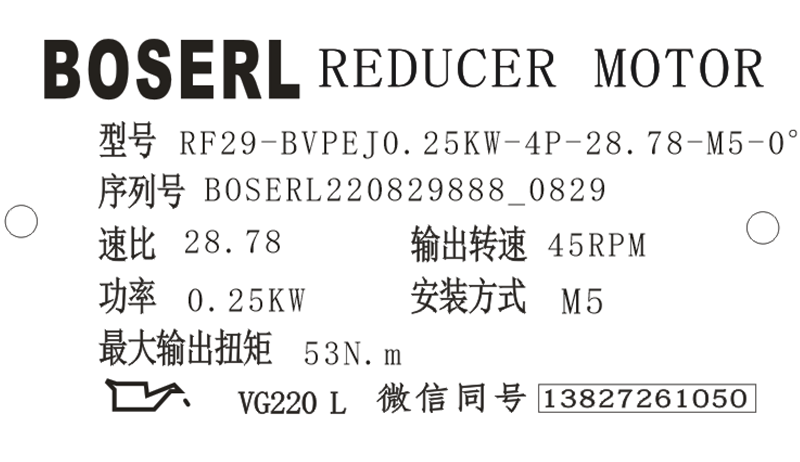

RF29減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF29減速器選型樣本。

RF29-BVPEJ0.25KW-4P-28.78-M5-0°

RF：系列代號

29：減速機規格代號

B：電機

VPEJ：變頻剎車電機

0.25KW：電機功率

4P：電機級數

28.78：減速機傳動比

M5：減速機安裝位置

0°：接線盒位置

RF29減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動RF29減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

RF29減速器安裝操作的正確方法：

RF29減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。立式減速機

RF29減速器的透氣：安裝位置為M1、M3、M5以及M6中的R29、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列RF29減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的RF29減速器，啟動RF29減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。

RF29減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

RF29減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的RF29減速器選型樣本”）。RF系列減速機

RF29減速器型號：

SRF27-AM100M4，SRF27-AM63M4，SRF27-AM71M4，SRF27-AM80M4，SRF27-AM90M4，SRF27-Y0.12KW，SRF27-Y0.18KW，SRF27-Y0.25KW，SRF27-Y0.37KW，SRF27-Y0.55KW，SRF27-Y0.75KW，SRF27-Y1.1KW，SRF27-Y1.5KW，SRF27-Y100M4，SRF27-Y2.2KW，SRF27-Y3KW，SRF27-Y63M4，SRF27-Y71M4，SRF27-Y80M4，SRF27-Y90M4，SRF27-YB100M4，SRF27-YB63M4，SRF27-YB71M4，SRF27-YB80M4，SRF27-YB90M4，SRF27-YDP100M4，SRF27-YDP63M4，SRF27-YDP71M4，SRF27-YDP80M4，SRF27-YDP90M4，SRF27-YE100M4，SRF27-YE63M4，SRF27-YE71M4，SRF27-YE80M4，SRF27-YE90M4，SRF27-YEJ100M4，SRF27-YEJ63M4，SRF27-YEJ71M4，SRF27-YEJ80M4，SRF27-YEJ90M4，SRF27-YEJB100M4，SRF27-YEJB63M4，SRF27-YEJB71M4，SRF27-YEJB80M4，SRF27-YEJB90M4，SRF27-YP100M4，SRF27-YP63M4，SRF27-YP71M4，SRF27-YP80M4，SRF27-YP90M4，SRF27-YPB100M4，SRF27-YPB63M4，SRF27-YPB71M4，SRF27-YPB80M4，SRF27-YPB90M4，SRF27-YPE100M4，SRF27-YPE63M4，SRF27-YPE71M4，SRF27-YPE80M4，SRF27-YPE90M4，SRF27-YS100M4，SRF27-YS63M4，SRF27-YS71M4，SRF27-YS80M4，SRF27-YS90M4，SRF27-YVB100M4，SRF27-YVB63M4，SRF27-YVB71M4，SRF27-YVB80M4，SRF27-YVB90M4，SRF27-YVP100M4，SRF27-YVP63M4，SRF27-YVP71M4，SRF27-YVP80M4，SRF27-YVP90M4，SRF27-YVPEJ100M4，SRF27-YVPEJ63M4，SRF27-YVPEJ71M4，SRF27-YVPEJ80M4，SRF27-YVPEJ90M4，NRF27-AM100M4，NRF27-AM63M4，NRF27-AM71M4，NRF27-AM80M4，NRF27-AM90M4，NRF27-Y0.12KW，NRF27-Y0.18KW，NRF27-Y0.25KW，NRF27-Y0.37KW，NRF27-Y0.55KW，NRF27-Y0.75KW，NRF27-Y1.1KW，NRF27-Y1.5KW，NRF27-Y100M4，NRF27-Y2.2KW，NRF27-Y3KW，NRF27-Y63M4，NRF27-Y71M4，NRF27-Y80M4，NRF27-Y90M4，NRF27-YB100M4，NRF27-YB63M4，NRF27-YB71M4，NRF27-YB80M4，NRF27-YB90M4，NRF27-YDP100M4，NRF27-YDP63M4，NRF27-YDP71M4，NRF27-YDP80M4，NRF27-YDP90M4，NRF27-YE100M4，NRF27-YE63M4，NRF27-YE71M4，NRF27-YE80M4，NRF27-YE90M4，NRF27-YEJ100M4，NRF27-YEJ63M4，NRF27-YEJ71M4，NRF27-YEJ80M4，NRF27-YEJ90M4，NRF27-YEJB100M4，NRF27-YEJB63M4，NRF27-YEJB71M4，NRF27-YEJB80M4，NRF27-YEJB90M4，NRF27-YP100M4，NRF27-YP63M4，NRF27-YP71M4，NRF27-YP80M4，NRF27-YP90M4，NRF27-YPB100M4，NRF27-YPB63M4，NRF27-YPB71M4，NRF27-YPB80M4，NRF27-YPB90M4，NRF27-YPE100M4，NRF27-YPE63M4，NRF27-YPE71M4，NRF27-YPE80M4，NRF27-YPE90M4，NRF27-YS100M4，NRF27-YS63M4，NRF27-YS71M4，NRF27-YS80M4，NRF27-YS90M4，NRF27-YVB100M4，NRF27-YVB63M4，NRF27-YVB71M4，NRF27-YVB80M4，NRF27-YVB90M4，NRF27-YVP100M4，NRF27-YVP63M4，NRF27-YVP71M4，NRF27-YVP80M4，NRF27-YVP90M4，NRF27-YVPEJ100M4，NRF27-YVPEJ63M4，NRF27-YVPEJ71M4，NRF27-YVPEJ80M4，NRF27-YVPEJ90M4，GRF29-AM100M4，GRF29-AM63M4，GRF29-AM71M4，GRF29-AM80M4，GRF29-AM90M4，GRF29-Y0.12KW，GRF29-Y0.18KW，GRF29-Y0.25KW，GRF29-Y0.37KW，GRF29-Y0.55KW，GRF29-Y0.75KW，GRF29-Y1.1KW，GRF29-Y1.5KW，GRF29-Y100M4，GRF29-Y2.2KW，GRF29-Y3KW，GRF29-Y63M4，GRF29-Y71M4，GRF29-Y80M4，GRF29-Y90M4，GRF29-YB100M4，GRF29-YB63M4，GRF29-YB71M4，GRF29-YB80M4，GRF29-YB90M4，GRF29-YDP100M4，GRF29-YDP63M4，GRF29-YDP71M4，GRF29-YDP80M4，GRF29-YDP90M4，GRF29-YE100M4，GRF29-YE63M4，GRF29-YE71M4，GRF29-YE80M4，GRF29-YE90M4，GRF29-YEJ100M4，GRF29-YEJ63M4，GRF29-YEJ71M4，GRF29-YEJ80M4，GRF29-YEJ90M4，GRF29-YEJB100M4，GRF29-YEJB63M4，GRF29-YEJB71M4，GRF29-YEJB80M4，GRF29-YEJB90M4，GRF29-YP100M4，GRF29-YP63M4，GRF29-YP71M4，GRF29-YP80M4，GRF29-YP90M4，GRF29-YPB100M4，GRF29-YPB63M4，GRF29-YPB71M4，GRF29-YPB80M4，GRF29-YPB90M4，GRF29-YPE100M4，GRF29-YPE63M4，GRF29-YPE71M4，GRF29-YPE80M4，GRF29-YPE90M4，GRF29-YS100M4，GRF29-YS63M4，GRF29-YS71M4，GRF29-YS80M4，GRF29-YS90M4，GRF29-YVB100M4，GRF29-YVB63M4，GRF29-YVB71M4，GRF29-YVB80M4，GRF29-YVB90M4，GRF29-YVP100M4，GRF29-YVP63M4，GRF29-YVP71M4，GRF29-YVP80M4，GRF29-YVP90M4，GRF29-YVPEJ100M4，GRF29-YVPEJ63M4，GRF29-YVPEJ71M4，GRF29-YVPEJ80M4，GRF29-YVPEJ90M4，ARF27-AM100M4，ARF27-AM63M4，ARF27-AM71M4，ARF27-AM80M4，ARF27-AM90M4，ARF27-Y0.12KW，ARF27-Y0.18KW，ARF27-Y0.25KW，ARF27-Y0.37KW，ARF27-Y0.55KW，ARF27-Y0.75KW，ARF27-Y1.1KW，ARF27-Y1.5KW，ARF27-Y100M4，ARF27-Y2.2KW，ARF27-Y3KW，ARF27-Y63M4，ARF27-Y71M4，ARF27-Y80M4，ARF27-Y90M4，ARF27-YB100M4，ARF27-YB63M4，ARF27-YB71M4，ARF27-YB80M4，ARF27-YB90M4，ARF27-YDP100M4，ARF27-YDP63M4，ARF27-YDP71M4，ARF27-YDP80M4，ARF27-YDP90M4，ARF27-YE100M4，ARF27-YE63M4，ARF27-YE71M4，ARF27-YE80M4，ARF27-YE90M4，ARF27-YEJ100M4，ARF27-YEJ63M4，ARF27-YEJ71M4，ARF27-YEJ80M4，ARF27-YEJ90M4，ARF27-YEJB100M4，ARF27-YEJB63M4，ARF27-YEJB71M4，ARF27-YEJB80M4，ARF27-YEJB90M4，ARF27-YP100M4，ARF27-YP63M4，ARF27-YP71M4，ARF27-YP80M4，ARF27-YP90M4，ARF27-YPB100M4，ARF27-YPB63M4，ARF27-YPB71M4，ARF27-YPB80M4，ARF27-YPB90M4，ARF27-YPE100M4，ARF27-YPE63M4，ARF27-YPE71M4，ARF27-YPE80M4，ARF27-YPE90M4，ARF27-YS100M4，ARF27-YS63M4，ARF27-YS71M4，ARF27-YS80M4，ARF27-YS90M4，ARF27-YVB100M4，ARF27-YVB63M4，ARF27-YVB71M4，ARF27-YVB80M4，ARF27-YVB90M4，ARF27-YVP100M4，ARF27-YVP63M4，ARF27-YVP71M4，ARF27-YVP80M4，ARF27-YVP90M4，ARF27-YVPEJ100M4，ARF27-YVPEJ63M4，ARF27-YVPEJ71M4，ARF27-YVPEJ80M4，ARF27-YVPEJ90M4，WRF27-AM100M4，WRF27-AM63M4，WRF27-AM71M4，WRF27-AM80M4，WRF27-AM90M4，WRF27-Y0.12KW，WRF27-Y0.18KW，WRF27-Y0.25KW，WRF27-Y0.37KW，WRF27-Y0.55KW，WRF27-Y0.75KW，WRF27-Y1.1KW，WRF27-Y1.5KW，WRF27-Y100M4，WRF27-Y2.2KW，WRF27-Y3KW，WRF27-Y63M4，WRF27-Y71M4，WRF27-Y80M4，WRF27-Y90M4，WRF27-YB100M4，WRF27-YB63M4，WRF27-YB71M4，WRF27-YB80M4，WRF27-YB90M4，WRF27-YDP100M4，WRF27-YDP63M4，WRF27-YDP71M4，WRF27-YDP80M4，WRF27-YDP90M4，WRF27-YE100M4，WRF27-YE63M4，WRF27-YE71M4，WRF27-YE80M4，WRF27-YE90M4，WRF27-YEJ100M4，WRF27-YEJ63M4，WRF27-YEJ71M4，WRF27-YEJ80M4，WRF27-YEJ90M4，WRF27-YEJB100M4，WRF27-YEJB63M4，WRF27-YEJB71M4，WRF27-YEJB80M4，WRF27-YEJB90M4，WRF27-YP100M4，WRF27-YP63M4，WRF27-YP71M4，WRF27-YP80M4，WRF27-YP90M4，WRF27-YPB100M4，WRF27-YPB63M4，WRF27-YPB71M4，WRF27-YPB80M4，WRF27-YPB90M4，WRF27-YPE100M4，WRF27-YPE63M4，WRF27-YPE71M4，WRF27-YPE80M4，WRF27-YPE90M4，WRF27-YS100M4，WRF27-YS63M4，WRF27-YS71M4，WRF27-YS80M4，WRF27-YS90M4，WRF27-YVB100M4，WRF27-YVB63M4，WRF27-YVB71M4，WRF27-YVB80M4，WRF27-YVB90M4，WRF27-YVP100M4，WRF27-YVP63M4，WRF27-YVP71M4，WRF27-YVP80M4，WRF27-YVP90M4，WRF27-YVPEJ100M4，WRF27-YVPEJ63M4，WRF27-YVPEJ71M4，WRF27-YVPEJ80M4，WRF27-YVPEJ90M4，RF27SF80，RF27SF90，RF27SF100，RF27SF112，RF27SF115，RF27SF140，RF27SF160，RF27SF190。

RF29減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.0668room.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：R29減速機
