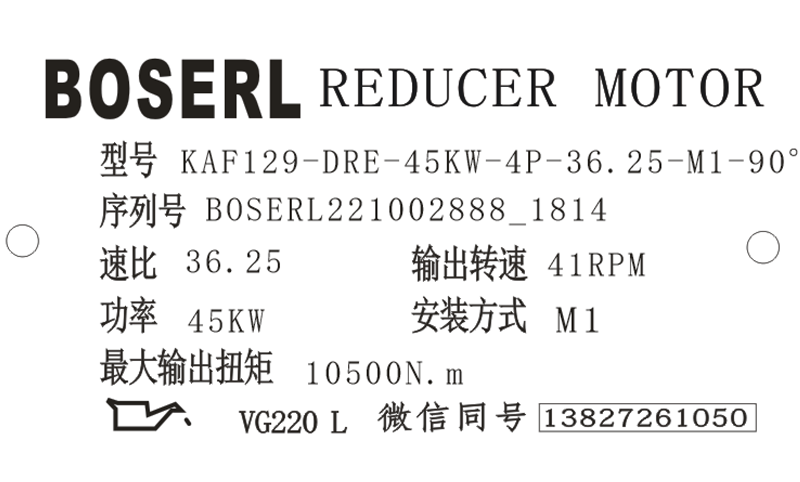

KAF129減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KAF129減速機選型樣本。

KAF129-DRE-45KW-4P-36.25-M1-90°

KAF：系列代號

129：減速機規格代號

DRE：電機

45KW：電機功率

4P：電機級數

36.25：減速機傳動比

M1：減速機安裝位置

90°：接線盒位置

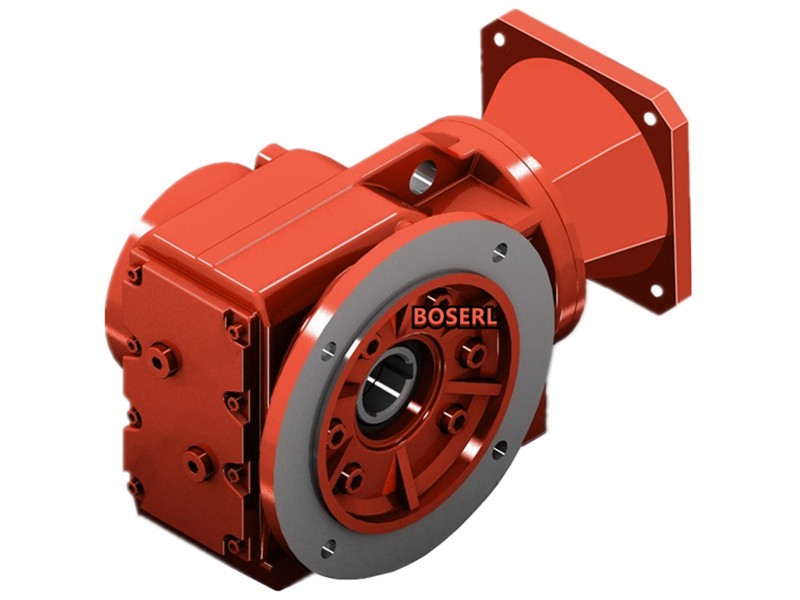

KAF129減速機AD軸入模塊配置：

KAF129減速機AD軸入模塊允許荷載：安裝電機時可能出現超常負荷；嚴禁超出下表所列的負荷值。強度等級為8.8的連接螺栓的最大負荷值。電機的最大允許許重力Fqmax，隨著中心距X的增加而呈線性下降。在中心距減小的情況下，Fqmax不增加；聯軸器輸出法蘭盤直徑：160mm。齒輪減速電機

KAF129減速機AD軸入模塊在進行調節之前松開螺母，使得螺栓可以在支架上軸向移動。當到達最終調節位置后再上緊螺母。不可通過支架來調整電機安裝平臺。二級減速機

KAF129減速機AD軸入模塊使用對中軸肩安裝應用設備：對應用設備進行固定時，必須提供相應長度的螺栓。新螺栓的長度L計算如下：［1］t+a；［t］旋入深度（參見表格）；［a］應用設備的厚度；［s］緊固螺紋（參見表格）

KAF129減速機AD軸入模塊根據計算所得的螺栓長度，選取最接近的較小的標準長度；從對中軸肩上卸下固定螺栓；清潔裝配表面和對中軸肩；清潔新螺栓的螺紋并且使用螺栓緊固劑抹在前段螺紋上；將應用設備裝在對中軸肩上，并根據下表所列的擰緊扭矩TA(見下表)擰入緊固螺栓。

KAF129減速機維護檢查：

KAF129減速機潤滑油更換周期：下圖為在一般條件下標準KAF129減速機的更換周期，對于惡劣環境或有腐蝕條件下使用的特殊情況要縮短更換潤滑油的間隔。

KAF129減速機維護：根據外部受到的影響，可以在必要情況下對表面漆/防銹漆進行修補或更新。直角減速機

KAF129減速機檢查：首次運行300小時后更換潤滑油，以后每6個月或3000小時檢查一次，發現油位不足或明顯渾濁應及時更換(參考下列圖表)：操作步驟檢查油的質量與油位；檢查是否可能因軸承損壞產生運轉噪音；檢查密封圈是否漏油；對于帶扭矩臂的KAF129減速機：檢測橡膠緩沖塊，必要時進行更換。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換礦物油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換合成潤滑油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。示具體情況而定，不定期檢查（取決于外部影響）：修補或者更新表面漆/防銹漆。

KAF129減速機型號：

SKAF127-Y112M4，SKAF127-Y11SKAF，SKAF127-Y132M4，SKAF127-Y15SKAF，SKAF127-Y160M4，SKAF127-Y18.5SKAF，SKAF127-Y180M4，SKAF127-Y200M4，SKAF127-Y225M4，SKAF127-Y22SKAF，SKAF127-Y250M4，SKAF127-Y280M4，SKAF127-Y30SKAF，SKAF127-Y37SKAF，SKAF127-Y45SKAF，SKAF127-Y4SKAF，SKAF127-Y5.5SKAF，SKAF127-Y55SKAF，SKAF127-Y7.5SKAF，SKAF127-Y75SKAF，SKAF127-YB112M4，SKAF127-YB132M4，SKAF127-YB160M4，SKAF127-YB180M4，SKAF127-YB200M4，SKAF127-YB225M4，SKAF127-YB250M4，SKAF127-YB280M4，SKAF127-YDP112M4，SKAF127-YDP132M4，SKAF127-YDP160M4，SKAF127-YDP180M4，SKAF127-YDP200M4，SKAF127-YDP225M4，SKAF127-YDP250M4，SKAF127-YDP280M4，SKAF127-YE112M4，SKAF127-YE132M4，SKAF127-YE160M4，SKAF127-YE180M4，SKAF127-YE200M4，SKAF127-YE225M4，SKAF127-YE250M4，SKAF127-YE280M4，SKAF127-YEJ112M4，SKAF127-YEJ132M4，SKAF127-YEJ160M4，SKAF127-YEJ180M4，SKAF127-YEJ200M4，SKAF127-YEJ225M4，SKAF127-YEJ250M4，SKAF127-YEJ280M4，SKAF127-YEJB112M4，SKAF127-YEJB132M4，SKAF127-YEJB160M4，SKAF127-YEJB180M4，SKAF127-YEJB200M4，SKAF127-YEJB225M4，SKAF127-YEJB250M4，SKAF127-YEJB280M4，SKAF127-YP112M4，SKAF127-YP132M4，SKAF127-YP160M4，SKAF127-YP180M4，SKAF127-YP200M4，SKAF127-YP225M4，SKAF127-YP250M4，SKAF127-YP280M4，SKAF127-YPB112M4，SKAF127-YPB132M4，SKAF127-YPB160M4，SKAF127-YPB180M4，SKAF127-YPB200M4，SKAF127-YPB225M4，SKAF127-YPB250M4，SKAF127-YPB280M4，SKAF127-YPE112M4，SKAF127-YPE132M4，SKAF127-YPE160M4，SKAF127-YPE180M4，SKAF127-YPE200M4，SKAF127-YPE225M4，SKAF127-YPE250M4，SKAF127-YPE280M4，SKAF127-YS112M4，SKAF127-YS132M4，SKAF127-YS160M4，SKAF127-YS180M4，SKAF127-YS200M4，SKAF127-YS225M4，SKAF127-YS250M4，SKAF127-YS280M4，SKAF127-YVB112M4，SKAF127-YVB132M4，SKAF127-YVB160M4，SKAF127-YVB180M4，SKAF127-YVB200M4，SKAF127-YVB225M4，SKAF127-YVB250M4，SKAF127-YVB280M4，SKAF127-YVP112M4，SKAF127-YVP132M4，SKAF127-YVP160M4，SKAF127-YVP180M4，SKAF127-YVP200M4，SKAF127-YVP225M4，SKAF127-YVP250M4，SKAF127-YVP280M4，SKAF127-YVPEJ112M4，SKAF127-YVPEJ132M4，SKAF127-YVPEJ160M4，SKAF127-YVPEJ180M4，SKAF127-YVPEJ200M4，SKAF127-YVPEJ225M4，SKAF127-YVPEJ250M4，SKAF127-YVPEJ280M4，NKAF127-Y112M4，NKAF127-Y11SKAF，NKAF127-Y132M4，NKAF127-Y15SKAF，NKAF127-Y160M4，NKAF127-Y18.5SKAF，NKAF127-Y180M4，NKAF127-Y200M4，NKAF127-Y225M4，NKAF127-Y22SKAF，NKAF127-Y250M4，NKAF127-Y280M4，NKAF127-Y30SKAF，NKAF127-Y37SKAF，NKAF127-Y45SKAF，NKAF127-Y4SKAF，NKAF127-Y5.5SKAF，NKAF127-Y55SKAF，NKAF127-Y7.5SKAF，NKAF127-Y75SKAF，NKAF127-YB112M4，NKAF127-YB132M4，NKAF127-YB160M4，NKAF127-YB180M4，NKAF127-YB200M4，NKAF127-YB225M4，NKAF127-YB250M4，NKAF127-YB280M4，NKAF127-YDP112M4，NKAF127-YDP132M4，NKAF127-YDP160M4，NKAF127-YDP180M4，NKAF127-YDP200M4，NKAF127-YDP225M4，NKAF127-YDP250M4，NKAF127-YDP280M4，NKAF127-YE112M4，NKAF127-YE132M4，NKAF127-YE160M4，NKAF127-YE180M4，NKAF127-YE200M4，NKAF127-YE225M4，NKAF127-YE250M4，NKAF127-YE280M4，NKAF127-YEJ112M4，NKAF127-YEJ132M4，NKAF127-YEJ160M4，NKAF127-YEJ180M4，NKAF127-YEJ200M4，NKAF127-YEJ225M4，NKAF127-YEJ250M4，NKAF127-YEJ280M4，NKAF127-YEJB112M4，NKAF127-YEJB132M4，NKAF127-YEJB160M4，NKAF127-YEJB180M4，NKAF127-YEJB200M4，NKAF127-YEJB225M4，NKAF127-YEJB250M4，NKAF127-YEJB280M4，NKAF127-YP112M4，NKAF127-YP132M4，NKAF127-YP160M4，NKAF127-YP180M4，NKAF127-YP200M4，NKAF127-YP225M4，NKAF127-YP250M4，NKAF127-YP280M4，NKAF127-YPB112M4，NKAF127-YPB132M4，NKAF127-YPB160M4，NKAF127-YPB180M4，NKAF127-YPB200M4，NKAF127-YPB225M4，NKAF127-YPB250M4，NKAF127-YPB280M4，NKAF127-YPE112M4，NKAF127-YPE132M4，NKAF127-YPE160M4，NKAF127-YPE180M4，NKAF127-YPE200M4，NKAF127-YPE225M4，NKAF127-YPE250M4，NKAF127-YPE280M4，NKAF127-YS112M4，NKAF127-YS132M4，NKAF127-YS160M4，NKAF127-YS180M4，NKAF127-YS200M4，NKAF127-YS225M4，NKAF127-YS250M4，NKAF127-YS280M4，NKAF127-YVB112M4，NKAF127-YVB132M4，NKAF127-YVB160M4，NKAF127-YVB180M4，NKAF127-YVB200M4，NKAF127-YVB225M4，NKAF127-YVB250M4，NKAF127-YVB280M4，NKAF127-YVP112M4，NKAF127-YVP132M4，NKAF127-YVP160M4，NKAF127-YVP180M4，NKAF127-YVP200M4，NKAF127-YVP225M4，NKAF127-YVP250M4，NKAF127-YVP280M4，NKAF127-YVPEJ112M4，NKAF127-YVPEJ132M4，NKAF127-YVPEJ160M4，NKAF127-YVPEJ180M4，NKAF127-YVPEJ200M4，NKAF127-YVPEJ225M4，NKAF127-YVPEJ250M4，NKAF127-YVPEJ280M4，WKAF127-Y112M4，WKAF127-Y11SKAF，WKAF127-Y132M4，WKAF127-Y15SKAF，WKAF127-Y160M4，WKAF127-Y18.5SKAF，WKAF127-Y180M4，WKAF127-Y200M4，WKAF127-Y225M4，WKAF127-Y22SKAF，WKAF127-Y250M4，WKAF127-Y280M4，WKAF127-Y30SKAF，WKAF127-Y37SKAF，WKAF127-Y45SKAF，WKAF127-Y4SKAF，WKAF127-Y5.5SKAF，WKAF127-Y55SKAF，WKAF127-Y7.5SKAF，WKAF127-Y75SKAF，WKAF127-YB112M4，WKAF127-YB132M4，WKAF127-YB160M4，WKAF127-YB180M4，WKAF127-YB200M4，WKAF127-YB225M4，WKAF127-YB250M4，WKAF127-YB280M4，WKAF127-YDP112M4，WKAF127-YDP132M4，WKAF127-YDP160M4，WKAF127-YDP180M4，WKAF127-YDP200M4，WKAF127-YDP225M4，WKAF127-YDP250M4，WKAF127-YDP280M4，WKAF127-YE112M4，WKAF127-YE132M4，WKAF127-YE160M4，WKAF127-YE180M4，WKAF127-YE200M4，WKAF127-YE225M4，WKAF127-YE250M4，WKAF127-YE280M4，WKAF127-YEJ112M4，WKAF127-YEJ132M4，WKAF127-YEJ160M4，WKAF127-YEJ180M4，WKAF127-YEJ200M4，WKAF127-YEJ225M4，WKAF127-YEJ250M4，WKAF127-YEJ280M4，WKAF127-YEJB112M4，WKAF127-YEJB132M4，WKAF127-YEJB160M4，WKAF127-YEJB180M4，WKAF127-YEJB200M4，WKAF127-YEJB225M4，WKAF127-YEJB250M4，WKAF127-YEJB280M4，WKAF127-YP112M4，WKAF127-YP132M4，WKAF127-YP160M4，WKAF127-YP180M4，WKAF127-YP200M4，WKAF127-YP225M4，WKAF127-YP250M4，WKAF127-YP280M4，WKAF127-YPB112M4，WKAF127-YPB132M4，WKAF127-YPB160M4，WKAF127-YPB180M4，WKAF127-YPB200M4，WKAF127-YPB225M4，WKAF127-YPB250M4，WKAF127-YPB280M4，WKAF127-YPE112M4，WKAF127-YPE132M4，WKAF127-YPE160M4，WKAF127-YPE180M4，WKAF127-YPE200M4，WKAF127-YPE225M4，WKAF127-YPE250M4，WKAF127-YPE280M4，WKAF127-YS112M4，WKAF127-YS132M4，WKAF127-YS160M4，WKAF127-YS180M4，WKAF127-YS200M4，WKAF127-YS225M4，WKAF127-YS250M4，WKAF127-YS280M4，WKAF127-YVB112M4，WKAF127-YVB132M4，WKAF127-YVB160M4，WKAF127-YVB180M4，WKAF127-YVB200M4，WKAF127-YVB225M4，WKAF127-YVB250M4，WKAF127-YVB280M4，WKAF127-YVP112M4，WKAF127-YVP132M4，WKAF127-YVP160M4，WKAF127-YVP180M4，WKAF127-YVP200M4，WKAF127-YVP225M4，WKAF127-YVP250M4，WKAF127-YVP280M4，WKAF127-YVPEJ112M4，WKAF127-YVPEJ132M4，WKAF127-YVPEJ160M4，WKAF127-YVPEJ180M4，WKAF127-YVPEJ200M4，WKAF127-YVPEJ225M4，WKAF127-YVPEJ250M4，WKAF127-YVPEJ280M4，AKAF127-Y112M4，AKAF127-Y11SKAF，AKAF127-Y132M4，AKAF127-Y15SKAF，AKAF127-Y160M4，AKAF127-Y18.5SKAF，AKAF127-Y180M4，AKAF127-Y200M4，AKAF127-Y225M4，AKAF127-Y22SKAF，AKAF127-Y250M4，AKAF127-Y280M4，AKAF127-Y30SKAF，AKAF127-Y37SKAF，AKAF127-Y45SKAF，AKAF127-Y4SKAF，AKAF127-Y5.5SKAF，AKAF127-Y55SKAF，AKAF127-Y7.5SKAF，AKAF127-Y75SKAF，AKAF127-YB112M4，AKAF127-YB132M4，AKAF127-YB160M4，AKAF127-YB180M4，AKAF127-YB200M4，AKAF127-YB225M4，AKAF127-YB250M4，AKAF127-YB280M4，AKAF127-YDP112M4，AKAF127-YDP132M4，AKAF127-YDP160M4，AKAF127-YDP180M4，AKAF127-YDP200M4，AKAF127-YDP225M4，AKAF127-YDP250M4，AKAF127-YDP280M4，AKAF127-YE112M4，AKAF127-YE132M4，AKAF127-YE160M4，AKAF127-YE180M4，AKAF127-YE200M4，AKAF127-YE225M4，AKAF127-YE250M4，AKAF127-YE280M4，AKAF127-YEJ112M4，AKAF127-YEJ132M4，AKAF127-YEJ160M4，AKAF127-YEJ180M4，AKAF127-YEJ200M4，AKAF127-YEJ225M4，AKAF127-YEJ250M4，AKAF127-YEJ280M4，AKAF127-YEJB112M4，AKAF127-YEJB132M4，AKAF127-YEJB160M4，AKAF127-YEJB180M4，AKAF127-YEJB200M4，AKAF127-YEJB225M4，AKAF127-YEJB250M4，AKAF127-YEJB280M4，AKAF127-YP112M4，AKAF127-YP132M4，AKAF127-YP160M4，AKAF127-YP180M4，AKAF127-YP200M4，AKAF127-YP225M4，AKAF127-YP250M4，AKAF127-YP280M4，AKAF127-YPB112M4，AKAF127-YPB132M4，AKAF127-YPB160M4，AKAF127-YPB180M4，AKAF127-YPB200M4，AKAF127-YPB225M4，AKAF127-YPB250M4，AKAF127-YPB280M4，AKAF127-YPE112M4，AKAF127-YPE132M4，AKAF127-YPE160M4，AKAF127-YPE180M4，AKAF127-YPE200M4，AKAF127-YPE225M4，AKAF127-YPE250M4，AKAF127-YPE280M4，AKAF127-YS112M4，AKAF127-YS132M4，AKAF127-YS160M4，AKAF127-YS180M4，AKAF127-YS200M4，AKAF127-YS225M4，AKAF127-YS250M4，AKAF127-YS280M4，AKAF127-YVB112M4，AKAF127-YVB132M4，AKAF127-YVB160M4，AKAF127-YVB180M4，AKAF127-YVB200M4，AKAF127-YVB225M4，AKAF127-YVB250M4，AKAF127-YVB280M4，AKAF127-YVP112M4，AKAF127-YVP132M4，AKAF127-YVP160M4，AKAF127-YVP180M4，AKAF127-YVP200M4，AKAF127-YVP225M4，AKAF127-YVP250M4，AKAF127-YVP280M4，AKAF127-YVPEJ112M4，AKAF127-YVPEJ132M4，AKAF127-YVPEJ160M4，AKAF127-YVPEJ180M4，AKAF127-YVPEJ200M4，AKAF127-YVPEJ225M4，AKAF127-YVPEJ250M4，AKAF127-YVPEJ280M4，GKAF129-Y112M4，GKAF129-Y11SKAF，GKAF129-Y132M4，GKAF129-Y15SKAF，GKAF129-Y160M4，GKAF129-Y18.5SKAF，GKAF129-Y180M4，GKAF129-Y200M4，GKAF129-Y225M4，GKAF129-Y22SKAF，GKAF129-Y250M4，GKAF129-Y280M4，GKAF129-Y30SKAF，GKAF129-Y37SKAF，GKAF129-Y45SKAF，GKAF129-Y4SKAF，GKAF129-Y5.5SKAF，GKAF129-Y55SKAF，GKAF129-Y7.5SKAF，GKAF129-Y75SKAF，GKAF129-YB112M4，GKAF129-YB132M4，GKAF129-YB160M4，GKAF129-YB180M4，GKAF129-YB200M4，GKAF129-YB225M4，GKAF129-YB250M4，GKAF129-YB280M4，GKAF129-YDP112M4，GKAF129-YDP132M4，GKAF129-YDP160M4，GKAF129-YDP180M4，GKAF129-YDP200M4，GKAF129-YDP225M4，GKAF129-YDP250M4，GKAF129-YDP280M4，GKAF129-YE112M4，GKAF129-YE132M4，GKAF129-YE160M4，GKAF129-YE180M4，GKAF129-YE200M4，GKAF129-YE225M4，GKAF129-YE250M4，GKAF129-YE280M4，GKAF129-YEJ112M4，GKAF129-YEJ132M4，GKAF129-YEJ160M4，GKAF129-YEJ180M4，GKAF129-YEJ200M4，GKAF129-YEJ225M4，GKAF129-YEJ250M4，GKAF129-YEJ280M4，GKAF129-YEJB112M4，GKAF129-YEJB132M4，GKAF129-YEJB160M4，GKAF129-YEJB180M4，GKAF129-YEJB200M4，GKAF129-YEJB225M4，GKAF129-YEJB250M4，GKAF129-YEJB280M4，GKAF129-YP112M4，GKAF129-YP132M4，GKAF129-YP160M4，GKAF129-YP180M4，GKAF129-YP200M4，GKAF129-YP225M4，GKAF129-YP250M4，GKAF129-YP280M4，GKAF129-YPB112M4，GKAF129-YPB132M4，GKAF129-YPB160M4，GKAF129-YPB180M4，GKAF129-YPB200M4，GKAF129-YPB225M4，GKAF129-YPB250M4，GKAF129-YPB280M4，GKAF129-YPE112M4，GKAF129-YPE132M4，GKAF129-YPE160M4，GKAF129-YPE180M4，GKAF129-YPE200M4，GKAF129-YPE225M4，GKAF129-YPE250M4，GKAF129-YPE280M4，GKAF129-YS112M4，GKAF129-YS132M4，GKAF129-YS160M4，GKAF129-YS180M4，GKAF129-YS200M4，GKAF129-YS225M4，GKAF129-YS250M4，GKAF129-YS280M4，GKAF129-YVB112M4，GKAF129-YVB132M4，GKAF129-YVB160M4，GKAF129-YVB180M4，GKAF129-YVB200M4，GKAF129-YVB225M4，GKAF129-YVB250M4，GKAF129-YVB280M4，GKAF129-YVP112M4，GKAF129-YVP132M4，GKAF129-YVP160M4，GKAF129-YVP180M4，GKAF129-YVP200M4，GKAF129-YVP225M4，GKAF129-YVP250M4，GKAF129-YVP280M4，GKAF129-YVPEJ112M4，GKAF129-YVPEJ132M4，GKAF129-YVPEJ160M4，GKAF129-YVPEJ180M4，GKAF129-YVPEJ200M4，GKAF129-YVPEJ225M4，GKAF129-YVPEJ250M4，GKAF129-YVPEJ280M4。

KAF129減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.0668room.com/product/list-kafxiliejiansuji-cn.html

推薦類似型號：K129減速機
