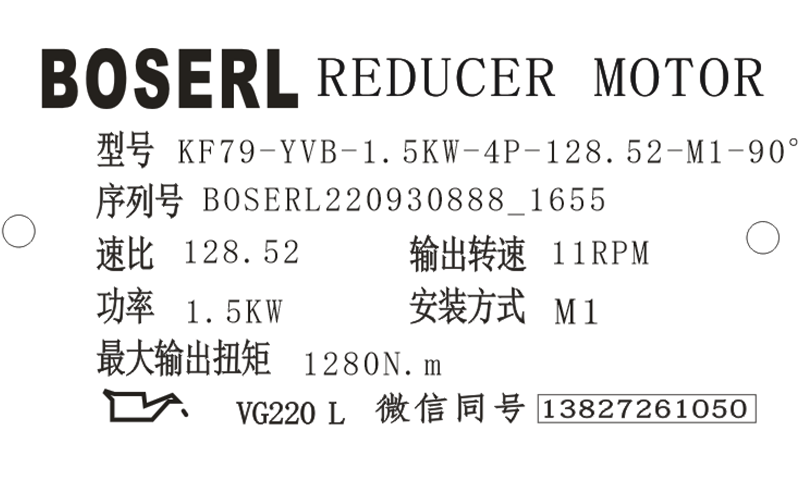

KF79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K79減速機選型樣本。

KF79-YVB-1.5KW-4P-128.52-M1-90°

KF：系列代號

79：減速機規格代號

YVB：電機

1.5KW：電機功率

4P：電機級數

128.52：減速機傳動比

M1：減速機安裝位置

90°：接線盒位置

KF79減速機潤滑油型號：

KF79減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據KF79減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“KF79減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。直角減速機

KF79減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF79減速機選型樣本中列出了安裝位置從M1到M6KF79減速機相應的潤滑油加注標準，請自行下載查看。

KF79減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

KF79減速機推薦使用的潤滑油，其等級和粘度指標見下表：

KF79減速機使用說明：

KF79減速機警告說明：由于KF79減速機發熱或KF79減速機油溫過高可能引起燙傷；對KF79減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

KF79減速機注意事項：若未注入正確的KF79減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

KF79減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見KF79減速機說明書安裝位置章節中的內容。

KF79減速機的螺母：立式安裝KF79減速機輸出法蘭螺母規格M12；KF79減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機

KF79減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

KF79減速機型號：

WKF77-Y0.25SKF，WKF77-Y0.37SKF，WKF77-Y0.55SKF，WKF77-Y0.75SKF，WKF77-Y1.1SKF，WKF77-Y1.5SKF，WKF77-Y100M4，WKF77-Y112M4，WKF77-Y11SKF，WKF77-Y132M4，WKF77-Y160M4，WKF77-Y2.2SKF，WKF77-Y3SKF，WKF77-Y4SKF，WKF77-Y5.5SKF，WKF77-Y7.5SKF，WKF77-Y71M4，WKF77-Y80M4，WKF77-Y90M4，WKF77-YB100M4，WKF77-YB112M4，WKF77-YB132M4，WKF77-YB160M4，WKF77-YB71M4，WKF77-YB80M4，WKF77-YB90M4，WKF77-YDP100M4，WKF77-YDP112M4，WKF77-YDP132M4，WKF77-YDP160M4，WKF77-YDP71M4，WKF77-YDP80M4，WKF77-YDP90M4，WKF77-YE100M4，WKF77-YE112M4，WKF77-YE132M4，WKF77-YE160M4，WKF77-YE71M4，WKF77-YE80M4，WKF77-YE90M4，WKF77-YEJ100M4，WKF77-YEJ112M4，WKF77-YEJ132M4，WKF77-YEJ160M4，WKF77-YEJ71M4，WKF77-YEJ80M4，WKF77-YEJ90M4，WKF77-YEJB100M4，WKF77-YEJB112M4，WKF77-YEJB132M4，WKF77-YEJB160M4，WKF77-YEJB71M4，WKF77-YEJB80M4，WKF77-YEJB90M4，WKF77-YP100M4，WKF77-YP112M4，WKF77-YP132M4，WKF77-YP160M4，WKF77-YP71M4，WKF77-YP80M4，WKF77-YP90M4，WKF77-YPB100M4，WKF77-YPB112M4，WKF77-YPB132M4，WKF77-YPB160M4，WKF77-YPB71M4，WKF77-YPB80M4，WKF77-YPB90M4，WKF77-YPE100M4，WKF77-YPE112M4，WKF77-YPE132M4，WKF77-YPE160M4，WKF77-YPE71M4，WKF77-YPE80M4，WKF77-YPE90M4，WKF77-YS100M4，WKF77-YS112M4，WKF77-YS132M4，WKF77-YS160M4，WKF77-YS71M4，WKF77-YS80M4，WKF77-YS90M4，WKF77-YVB100M4，WKF77-YVB112M4，WKF77-YVB132M4，WKF77-YVB160M4，WKF77-YVB71M4，WKF77-YVB80M4，WKF77-YVB90M4，WKF77-YVP100M4，WKF77-YVP112M4，WKF77-YVP132M4，WKF77-YVP160M4，WKF77-YVP71M4，WKF77-YVP80M4，WKF77-YVP90M4，WKF77-YVPEJ100M4，WKF77-YVPEJ112M4，WKF77-YVPEJ132M4，WKF77-YVPEJ160M4，WKF77-YVPEJ71M4，WKF77-YVPEJ80M4，WKF77-YVPEJ90M4，AKF77-Y0.25SKF，AKF77-Y0.37SKF，AKF77-Y0.55SKF，AKF77-Y0.75SKF，AKF77-Y1.1SKF，AKF77-Y1.5SKF，AKF77-Y100M4，AKF77-Y112M4，AKF77-Y11SKF，AKF77-Y132M4，AKF77-Y160M4，AKF77-Y2.2SKF，AKF77-Y3SKF，AKF77-Y4SKF，AKF77-Y5.5SKF，AKF77-Y7.5SKF，AKF77-Y71M4，AKF77-Y80M4，AKF77-Y90M4，AKF77-YB100M4，AKF77-YB112M4，AKF77-YB132M4，AKF77-YB160M4，AKF77-YB71M4，AKF77-YB80M4，AKF77-YB90M4，AKF77-YDP100M4，AKF77-YDP112M4，AKF77-YDP132M4，AKF77-YDP160M4，AKF77-YDP71M4，AKF77-YDP80M4，AKF77-YDP90M4，AKF77-YE100M4，AKF77-YE112M4，AKF77-YE132M4，AKF77-YE160M4，AKF77-YE71M4，AKF77-YE80M4，AKF77-YE90M4，AKF77-YEJ100M4，AKF77-YEJ112M4，AKF77-YEJ132M4，AKF77-YEJ160M4，AKF77-YEJ71M4，AKF77-YEJ80M4，AKF77-YEJ90M4，AKF77-YEJB100M4，AKF77-YEJB112M4，AKF77-YEJB132M4，AKF77-YEJB160M4，AKF77-YEJB71M4，AKF77-YEJB80M4，AKF77-YEJB90M4，AKF77-YP100M4，AKF77-YP112M4，AKF77-YP132M4，AKF77-YP160M4，AKF77-YP71M4，AKF77-YP80M4，AKF77-YP90M4，AKF77-YPB100M4，AKF77-YPB112M4，AKF77-YPB132M4，AKF77-YPB160M4，AKF77-YPB71M4，AKF77-YPB80M4，AKF77-YPB90M4，AKF77-YPE100M4，AKF77-YPE112M4，AKF77-YPE132M4，AKF77-YPE160M4，AKF77-YPE71M4，AKF77-YPE80M4，AKF77-YPE90M4，AKF77-YS100M4，AKF77-YS112M4，AKF77-YS132M4，AKF77-YS160M4，AKF77-YS71M4，AKF77-YS80M4，AKF77-YS90M4，AKF77-YVB100M4，AKF77-YVB112M4，AKF77-YVB132M4，AKF77-YVB160M4，AKF77-YVB71M4，AKF77-YVB80M4，AKF77-YVB90M4，AKF77-YVP100M4，AKF77-YVP112M4，AKF77-YVP132M4，AKF77-YVP160M4，AKF77-YVP71M4，AKF77-YVP80M4，AKF77-YVP90M4，AKF77-YVPEJ100M4，AKF77-YVPEJ112M4，AKF77-YVPEJ132M4，AKF77-YVPEJ160M4，AKF77-YVPEJ71M4，AKF77-YVPEJ80M4，AKF77-YVPEJ90M4，NKF77-Y0.25SKF，NKF77-Y0.37SKF，NKF77-Y0.55SKF，NKF77-Y0.75SKF，NKF77-Y1.1SKF，NKF77-Y1.5SKF，NKF77-Y100M4，NKF77-Y112M4，NKF77-Y11SKF，NKF77-Y132M4，NKF77-Y160M4，NKF77-Y2.2SKF，NKF77-Y3SKF，NKF77-Y4SKF，NKF77-Y5.5SKF，NKF77-Y7.5SKF，NKF77-Y71M4，NKF77-Y80M4，NKF77-Y90M4，NKF77-YB100M4，NKF77-YB112M4，NKF77-YB132M4，NKF77-YB160M4，NKF77-YB71M4，NKF77-YB80M4，NKF77-YB90M4，NKF77-YDP100M4，NKF77-YDP112M4，NKF77-YDP132M4，NKF77-YDP160M4，NKF77-YDP71M4，NKF77-YDP80M4，NKF77-YDP90M4，NKF77-YE100M4，NKF77-YE112M4，NKF77-YE132M4，NKF77-YE160M4，NKF77-YE71M4，NKF77-YE80M4，NKF77-YE90M4，NKF77-YEJ100M4，NKF77-YEJ112M4，NKF77-YEJ132M4，NKF77-YEJ160M4，NKF77-YEJ71M4，NKF77-YEJ80M4，NKF77-YEJ90M4，NKF77-YEJB100M4，NKF77-YEJB112M4，NKF77-YEJB132M4，NKF77-YEJB160M4，NKF77-YEJB71M4，NKF77-YEJB80M4，NKF77-YEJB90M4，NKF77-YP100M4，NKF77-YP112M4，NKF77-YP132M4，NKF77-YP160M4，NKF77-YP71M4，NKF77-YP80M4，NKF77-YP90M4，NKF77-YPB100M4，NKF77-YPB112M4，NKF77-YPB132M4，NKF77-YPB160M4，NKF77-YPB71M4，NKF77-YPB80M4，NKF77-YPB90M4，NKF77-YPE100M4，NKF77-YPE112M4，NKF77-YPE132M4，NKF77-YPE160M4，NKF77-YPE71M4，NKF77-YPE80M4，NKF77-YPE90M4，NKF77-YS100M4，NKF77-YS112M4，NKF77-YS132M4，NKF77-YS160M4，NKF77-YS71M4，NKF77-YS80M4，NKF77-YS90M4，NKF77-YVB100M4，NKF77-YVB112M4，NKF77-YVB132M4，NKF77-YVB160M4，NKF77-YVB71M4，NKF77-YVB80M4，NKF77-YVB90M4，NKF77-YVP100M4，NKF77-YVP112M4，NKF77-YVP132M4，NKF77-YVP160M4，NKF77-YVP71M4，NKF77-YVP80M4，NKF77-YVP90M4，NKF77-YVPEJ100M4，NKF77-YVPEJ112M4，NKF77-YVPEJ132M4，NKF77-YVPEJ160M4，NKF77-YVPEJ71M4，NKF77-YVPEJ80M4，NKF77-YVPEJ90M4，SKF77-Y0.25SKF，SKF77-Y0.37SKF，SKF77-Y0.55SKF，SKF77-Y0.75SKF，SKF77-Y1.1SKF，SKF77-Y1.5SKF，SKF77-Y100M4，SKF77-Y112M4，SKF77-Y11SKF，SKF77-Y132M4，SKF77-Y160M4，SKF77-Y2.2SKF，SKF77-Y3SKF，SKF77-Y4SKF，SKF77-Y5.5SKF，SKF77-Y7.5SKF，SKF77-Y71M4，SKF77-Y80M4，SKF77-Y90M4，SKF77-YB100M4，SKF77-YB112M4，SKF77-YB132M4，SKF77-YB160M4，SKF77-YB71M4，SKF77-YB80M4，SKF77-YB90M4，SKF77-YDP100M4，SKF77-YDP112M4，SKF77-YDP132M4，SKF77-YDP160M4，SKF77-YDP71M4，SKF77-YDP80M4，SKF77-YDP90M4，SKF77-YE100M4，SKF77-YE112M4，SKF77-YE132M4，SKF77-YE160M4，SKF77-YE71M4，SKF77-YE80M4，SKF77-YE90M4，SKF77-YEJ100M4，SKF77-YEJ112M4，SKF77-YEJ132M4，SKF77-YEJ160M4，SKF77-YEJ71M4，SKF77-YEJ80M4，SKF77-YEJ90M4，SKF77-YEJB100M4，SKF77-YEJB112M4，SKF77-YEJB132M4，SKF77-YEJB160M4，SKF77-YEJB71M4，SKF77-YEJB80M4，SKF77-YEJB90M4，SKF77-YP100M4，SKF77-YP112M4，SKF77-YP132M4，SKF77-YP160M4，SKF77-YP71M4，SKF77-YP80M4，SKF77-YP90M4，SKF77-YPB100M4，SKF77-YPB112M4，SKF77-YPB132M4，SKF77-YPB160M4，SKF77-YPB71M4，SKF77-YPB80M4，SKF77-YPB90M4，SKF77-YPE100M4，SKF77-YPE112M4，SKF77-YPE132M4，SKF77-YPE160M4，SKF77-YPE71M4，SKF77-YPE80M4，SKF77-YPE90M4，SKF77-YS100M4，SKF77-YS112M4，SKF77-YS132M4，SKF77-YS160M4，SKF77-YS71M4，SKF77-YS80M4，SKF77-YS90M4，SKF77-YVB100M4，SKF77-YVB112M4，SKF77-YVB132M4，SKF77-YVB160M4，SKF77-YVB71M4，SKF77-YVB80M4，SKF77-YVB90M4，SKF77-YVP100M4，SKF77-YVP112M4，SKF77-YVP132M4，SKF77-YVP160M4，SKF77-YVP71M4，SKF77-YVP80M4，SKF77-YVP90M4，SKF77-YVPEJ100M4，SKF77-YVPEJ112M4，SKF77-YVPEJ132M4，SKF77-YVPEJ160M4，SKF77-YVPEJ71M4，SKF77-YVPEJ80M4，SKF77-YVPEJ90M4，GKF79-Y0.25SKF，GKF79-Y0.37SKF，GKF79-Y0.55SKF，GKF79-Y0.75SKF，GKF79-Y1.1SKF，GKF79-Y1.5SKF，GKF79-Y100M4，GKF79-Y112M4，GKF79-Y11SKF，GKF79-Y132M4，GKF79-Y160M4，GKF79-Y2.2SKF，GKF79-Y3SKF，GKF79-Y4SKF，GKF79-Y5.5SKF，GKF79-Y7.5SKF，GKF79-Y71M4，GKF79-Y80M4，GKF79-Y90M4，GKF79-YB100M4，GKF79-YB112M4，GKF79-YB132M4，GKF79-YB160M4，GKF79-YB71M4，GKF79-YB80M4，GKF79-YB90M4，GKF79-YDP100M4，GKF79-YDP112M4，GKF79-YDP132M4，GKF79-YDP160M4，GKF79-YDP71M4，GKF79-YDP80M4，GKF79-YDP90M4，GKF79-YE100M4，GKF79-YE112M4，GKF79-YE132M4，GKF79-YE160M4，GKF79-YE71M4，GKF79-YE80M4，GKF79-YE90M4，GKF79-YEJ100M4，GKF79-YEJ112M4，GKF79-YEJ132M4，GKF79-YEJ160M4，GKF79-YEJ71M4，GKF79-YEJ80M4，GKF79-YEJ90M4，GKF79-YEJB100M4，GKF79-YEJB112M4，GKF79-YEJB132M4，GKF79-YEJB160M4，GKF79-YEJB71M4，GKF79-YEJB80M4，GKF79-YEJB90M4，GKF79-YP100M4，GKF79-YP112M4，GKF79-YP132M4，GKF79-YP160M4，GKF79-YP71M4，GKF79-YP80M4，GKF79-YP90M4，GKF79-YPB100M4，GKF79-YPB112M4，GKF79-YPB132M4，GKF79-YPB160M4，GKF79-YPB71M4，GKF79-YPB80M4，GKF79-YPB90M4，GKF79-YPE100M4，GKF79-YPE112M4，GKF79-YPE132M4，GKF79-YPE160M4，GKF79-YPE71M4，GKF79-YPE80M4，GKF79-YPE90M4，GKF79-YS100M4，GKF79-YS112M4，GKF79-YS132M4，GKF79-YS160M4，GKF79-YS71M4，GKF79-YS80M4，GKF79-YS90M4，GKF79-YVB100M4，GKF79-YVB112M4，GKF79-YVB132M4，GKF79-YVB160M4，GKF79-YVB71M4，GKF79-YVB80M4，GKF79-YVB90M4，GKF79-YVP100M4，GKF79-YVP112M4，GKF79-YVP132M4，GKF79-YVP160M4，GKF79-YVP71M4，GKF79-YVP80M4，GKF79-YVP90M4，GKF79-YVPEJ100M4，GKF79-YVPEJ112M4，GKF79-YVPEJ132M4，GKF79-YVPEJ160M4，GKF79-YVPEJ71M4，GKF79-YVPEJ80M4，GKF79-YVPEJ90M4。

KF79減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.0668room.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K79減速機
