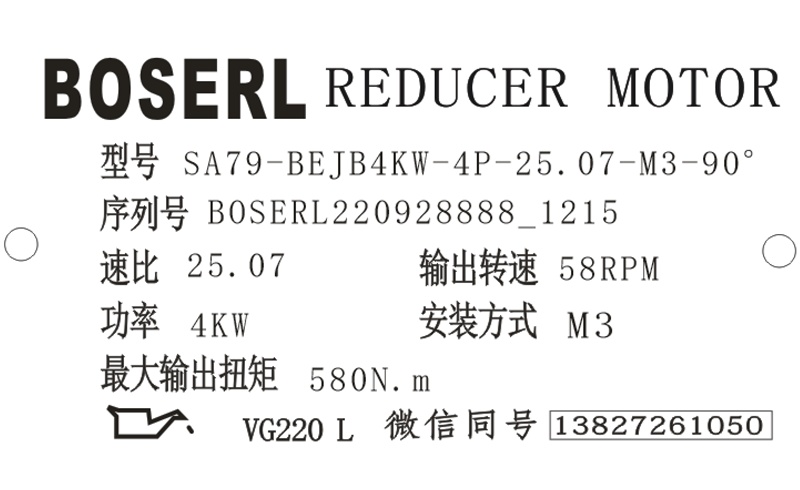

SA79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA79減速機選型樣本。

SA79-BEJB4KW-4P-25.07-M3-90°

SA：系列代號

79：減速機規格代號

BEJB：電機

4KW：電機功率

4P：電機級數

25.07：減速機傳動比

M3：減速機安裝位置

90°：接線盒位置

SA79減速機扭力臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為SA79減速機的扭力臂安裝示意圖：兩面均安裝支架。齒輪減速電機

SA79減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將SA79減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。自鎖減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。伺服電機連接減速機

SA79減速機型號：

ASA77-Y0.25KW，ASA77-Y0.37KW，ASA77-Y0.55KW，ASA77-Y0.75KW，ASA77-Y1.1KW，ASA77-Y1.5KW，ASA77-Y100M4，ASA77-Y112M4，ASA77-Y132M4，ASA77-Y2.2KW，ASA77-Y3KW，ASA77-Y4KW，ASA77-Y5.5KW，ASA77-Y7.5KW，ASA77-Y71M4，ASA77-Y80M4，ASA77-Y90M4，ASA77-YB100M4，ASA77-YB112M4，ASA77-YB132M4，ASA77-YB71M4，ASA77-YB80M4，ASA77-YB90M4，ASA77-YDP100M4，ASA77-YDP112M4，ASA77-YDP132M4，ASA77-YDP71M4，ASA77-YDP80M4，ASA77-YDP90M4，ASA77-YE100M4，ASA77-YE112M4，ASA77-YE132M4，ASA77-YE71M4，ASA77-YE80M4，ASA77-YE90M4，ASA77-YEJ100M4，ASA77-YEJ112M4，ASA77-YEJ132M4，ASA77-YEJ71M4，ASA77-YEJ80M4，ASA77-YEJ90M4，ASA77-YEJB100M4，ASA77-YEJB112M4，ASA77-YEJB132M4，ASA77-YEJB71M4，ASA77-YEJB80M4，ASA77-YEJB90M4，ASA77-YP100M4，ASA77-YP112M4，ASA77-YP132M4，ASA77-YP71M4，ASA77-YP80M4，ASA77-YP90M4，ASA77-YPB100M4，ASA77-YPB112M4，ASA77-YPB132M4，ASA77-YPB71M4，ASA77-YPB80M4，ASA77-YPB90M4，ASA77-YPE100M4，ASA77-YPE112M4，ASA77-YPE132M4，ASA77-YPE71M4，ASA77-YPE80M4，ASA77-YPE90M4，ASA77-YS100M4，ASA77-YS112M4，ASA77-YS132M4，ASA77-YS71M4，ASA77-YS80M4，ASA77-YS90M4，ASA77-YVB100M4，ASA77-YVB112M4，ASA77-YVB132M4，ASA77-YVB71M4，ASA77-YVB80M4，ASA77-YVB90M4，ASA77-YVP100M4，ASA77-YVP112M4，ASA77-YVP132M4，ASA77-YVP71M4，ASA77-YVP80M4，ASA77-YVP90M4，ASA77-YVPEJ100M4，ASA77-YVPEJ112M4，ASA77-YVPEJ132M4，ASA77-YVPEJ71M4，ASA77-YVPEJ80M4，ASA77-YVPEJ90M4，WSA77-Y0.25KW，WSA77-Y0.37KW，WSA77-Y0.55KW，WSA77-Y0.75KW，WSA77-Y1.1KW，WSA77-Y1.5KW，WSA77-Y100M4，WSA77-Y112M4，WSA77-Y132M4，WSA77-Y2.2KW，WSA77-Y3KW，WSA77-Y4KW，WSA77-Y5.5KW，WSA77-Y7.5KW，WSA77-Y71M4，WSA77-Y80M4，WSA77-Y90M4，WSA77-YB100M4，WSA77-YB112M4，WSA77-YB132M4，WSA77-YB71M4，WSA77-YB80M4，WSA77-YB90M4，WSA77-YDP100M4，WSA77-YDP112M4，WSA77-YDP132M4，WSA77-YDP71M4，WSA77-YDP80M4，WSA77-YDP90M4，WSA77-YE100M4，WSA77-YE112M4，WSA77-YE132M4，WSA77-YE71M4，WSA77-YE80M4，WSA77-YE90M4，WSA77-YEJ100M4，WSA77-YEJ112M4，WSA77-YEJ132M4，WSA77-YEJ71M4，WSA77-YEJ80M4，WSA77-YEJ90M4，WSA77-YEJB100M4，WSA77-YEJB112M4，WSA77-YEJB132M4，WSA77-YEJB71M4，WSA77-YEJB80M4，WSA77-YEJB90M4，WSA77-YP100M4，WSA77-YP112M4，WSA77-YP132M4，WSA77-YP71M4，WSA77-YP80M4，WSA77-YP90M4，WSA77-YPB100M4，WSA77-YPB112M4，WSA77-YPB132M4，WSA77-YPB71M4，WSA77-YPB80M4，WSA77-YPB90M4，WSA77-YPE100M4，WSA77-YPE112M4，WSA77-YPE132M4，WSA77-YPE71M4，WSA77-YPE80M4，WSA77-YPE90M4，WSA77-YS100M4，WSA77-YS112M4，WSA77-YS132M4，WSA77-YS71M4，WSA77-YS80M4，WSA77-YS90M4，WSA77-YVB100M4，WSA77-YVB112M4，WSA77-YVB132M4，WSA77-YVB71M4，WSA77-YVB80M4，WSA77-YVB90M4，WSA77-YVP100M4，WSA77-YVP112M4，WSA77-YVP132M4，WSA77-YVP71M4，WSA77-YVP80M4，WSA77-YVP90M4，WSA77-YVPEJ100M4，WSA77-YVPEJ112M4，WSA77-YVPEJ132M4，WSA77-YVPEJ71M4，WSA77-YVPEJ80M4，WSA77-YVPEJ90M4，NSA77-Y0.25KW，NSA77-Y0.37KW，NSA77-Y0.55KW，NSA77-Y0.75KW，NSA77-Y1.1KW，NSA77-Y1.5KW，NSA77-Y100M4，NSA77-Y112M4，NSA77-Y132M4，NSA77-Y2.2KW，NSA77-Y3KW，NSA77-Y4KW，NSA77-Y5.5KW，NSA77-Y7.5KW，NSA77-Y71M4，NSA77-Y80M4，NSA77-Y90M4，NSA77-YB100M4，NSA77-YB112M4，NSA77-YB132M4，NSA77-YB71M4，NSA77-YB80M4，NSA77-YB90M4，NSA77-YDP100M4，NSA77-YDP112M4，NSA77-YDP132M4，NSA77-YDP71M4，NSA77-YDP80M4，NSA77-YDP90M4，NSA77-YE100M4，NSA77-YE112M4，NSA77-YE132M4，NSA77-YE71M4，NSA77-YE80M4，NSA77-YE90M4，NSA77-YEJ100M4，NSA77-YEJ112M4，NSA77-YEJ132M4，NSA77-YEJ71M4，NSA77-YEJ80M4，NSA77-YEJ90M4，NSA77-YEJB100M4，NSA77-YEJB112M4，NSA77-YEJB132M4，NSA77-YEJB71M4，NSA77-YEJB80M4，NSA77-YEJB90M4，NSA77-YP100M4，NSA77-YP112M4，NSA77-YP132M4，NSA77-YP71M4，NSA77-YP80M4，NSA77-YP90M4，NSA77-YPB100M4，NSA77-YPB112M4，NSA77-YPB132M4，NSA77-YPB71M4，NSA77-YPB80M4，NSA77-YPB90M4，NSA77-YPE100M4，NSA77-YPE112M4，NSA77-YPE132M4，NSA77-YPE71M4，NSA77-YPE80M4，NSA77-YPE90M4，NSA77-YS100M4，NSA77-YS112M4，NSA77-YS132M4，NSA77-YS71M4，NSA77-YS80M4，NSA77-YS90M4，NSA77-YVB100M4，NSA77-YVB112M4，NSA77-YVB132M4，NSA77-YVB71M4，NSA77-YVB80M4，NSA77-YVB90M4，NSA77-YVP100M4，NSA77-YVP112M4，NSA77-YVP132M4，NSA77-YVP71M4，NSA77-YVP80M4，NSA77-YVP90M4，NSA77-YVPEJ100M4，NSA77-YVPEJ112M4，NSA77-YVPEJ132M4，NSA77-YVPEJ71M4，NSA77-YVPEJ80M4，NSA77-YVPEJ90M4，SSA77-Y0.25KW，SSA77-Y0.37KW，SSA77-Y0.55KW，SSA77-Y0.75KW，SSA77-Y1.1KW，SSA77-Y1.5KW，SSA77-Y100M4，SSA77-Y112M4，SSA77-Y132M4，SSA77-Y2.2KW，SSA77-Y3KW，SSA77-Y4KW，SSA77-Y5.5KW，SSA77-Y7.5KW，SSA77-Y71M4，SSA77-Y80M4，SSA77-Y90M4，SSA77-YB100M4，SSA77-YB112M4，SSA77-YB132M4，SSA77-YB71M4，SSA77-YB80M4，SSA77-YB90M4，SSA77-YDP100M4，SSA77-YDP112M4，SSA77-YDP132M4，SSA77-YDP71M4，SSA77-YDP80M4，SSA77-YDP90M4，SSA77-YE100M4，SSA77-YE112M4，SSA77-YE132M4，SSA77-YE71M4，SSA77-YE80M4，SSA77-YE90M4，SSA77-YEJ100M4，SSA77-YEJ112M4，SSA77-YEJ132M4，SSA77-YEJ71M4，SSA77-YEJ80M4，SSA77-YEJ90M4，SSA77-YEJB100M4，SSA77-YEJB112M4，SSA77-YEJB132M4，SSA77-YEJB71M4，SSA77-YEJB80M4，SSA77-YEJB90M4，SSA77-YP100M4，SSA77-YP112M4，SSA77-YP132M4，SSA77-YP71M4，SSA77-YP80M4，SSA77-YP90M4，SSA77-YPB100M4，SSA77-YPB112M4，SSA77-YPB132M4，SSA77-YPB71M4，SSA77-YPB80M4，SSA77-YPB90M4，SSA77-YPE100M4，SSA77-YPE112M4，SSA77-YPE132M4，SSA77-YPE71M4，SSA77-YPE80M4，SSA77-YPE90M4，SSA77-YS100M4，SSA77-YS112M4，SSA77-YS132M4，SSA77-YS71M4，SSA77-YS80M4，SSA77-YS90M4，SSA77-YVB100M4，SSA77-YVB112M4，SSA77-YVB132M4，SSA77-YVB71M4，SSA77-YVB80M4，SSA77-YVB90M4，SSA77-YVP100M4，SSA77-YVP112M4，SSA77-YVP132M4，SSA77-YVP71M4，SSA77-YVP80M4，SSA77-YVP90M4，SSA77-YVPEJ100M4，SSA77-YVPEJ112M4，SSA77-YVPEJ132M4，SSA77-YVPEJ71M4，SSA77-YVPEJ80M4，SSA77-YVPEJ90M4，GSA79-Y0.25KW，GSA79-Y0.37KW，GSA79-Y0.55KW，GSA79-Y0.75KW，GSA79-Y1.1KW，GSA79-Y1.5KW，GSA79-Y100M4，GSA79-Y112M4，GSA79-Y132M4，GSA79-Y2.2KW，GSA79-Y3KW，GSA79-Y4KW，GSA79-Y5.5KW，GSA79-Y7.5KW，GSA79-Y71M4，GSA79-Y80M4，GSA79-Y90M4，GSA79-YB100M4，GSA79-YB112M4，GSA79-YB132M4，GSA79-YB71M4，GSA79-YB80M4，GSA79-YB90M4，GSA79-YDP100M4，GSA79-YDP112M4，GSA79-YDP132M4，GSA79-YDP71M4，GSA79-YDP80M4，GSA79-YDP90M4，GSA79-YE100M4，GSA79-YE112M4，GSA79-YE132M4，GSA79-YE71M4，GSA79-YE80M4，GSA79-YE90M4，GSA79-YEJ100M4，GSA79-YEJ112M4，GSA79-YEJ132M4，GSA79-YEJ71M4，GSA79-YEJ80M4，GSA79-YEJ90M4，GSA79-YEJB100M4，GSA79-YEJB112M4，GSA79-YEJB132M4，GSA79-YEJB71M4，GSA79-YEJB80M4，GSA79-YEJB90M4，GSA79-YP100M4，GSA79-YP112M4，GSA79-YP132M4，GSA79-YP71M4，GSA79-YP80M4，GSA79-YP90M4，GSA79-YPB100M4，GSA79-YPB112M4，GSA79-YPB132M4，GSA79-YPB71M4，GSA79-YPB80M4，GSA79-YPB90M4，GSA79-YPE100M4，GSA79-YPE112M4，GSA79-YPE132M4，GSA79-YPE71M4，GSA79-YPE80M4，GSA79-YPE90M4，GSA79-YS100M4，GSA79-YS112M4，GSA79-YS132M4，GSA79-YS71M4，GSA79-YS80M4，GSA79-YS90M4，GSA79-YVB100M4，GSA79-YVB112M4，GSA79-YVB132M4，GSA79-YVB71M4，GSA79-YVB80M4，GSA79-YVB90M4，GSA79-YVP100M4，GSA79-YVP112M4，GSA79-YVP132M4，GSA79-YVP71M4，GSA79-YVP80M4，GSA79-YVP90M4，GSA79-YVPEJ100M4，GSA79-YVPEJ112M4，GSA79-YVPEJ132M4，GSA79-YVPEJ71M4，GSA79-YVPEJ80M4，GSA79-YVPEJ90M4。

SA79減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.0668room.com/product/list-saxiliejiansuji-cn.html

推薦類似型號：S79減速機
